Kylsystems-kylvätskeslangar for BMW 5 Series E61 LCI 520d (2009)

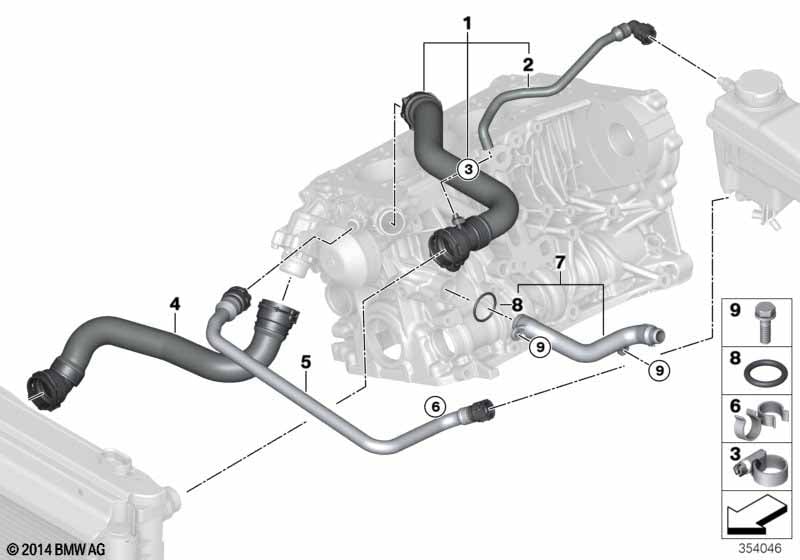

This Kylsystems-kylvätskeslangar technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Automatväxel |
S205A=Nej |
||||||||
| 01 | Kylarmedelledning | 1 | 17127799747 | +stomme | Shop at ECS Tuning | |||||
| 02 | Luftningsslang | 1 | 17127787465 | Shop at ECS Tuning | ||||||
| 03 | Slangklaemma | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Kylarmedelledning | 1 | 17127799748 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 05 | Kylarmedelledning | 1 | 17127799749 | +stomme | Shop at ECS Tuning | |||||
| 06 | Slangfaeste | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 07 | Returrör | 1 | 11537800583 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 20X2,5 | 1 | 11537802638 | Shop at ECS Tuning | |||||
| 09 | Sexkantskruv med bricka | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
