Panoramatak elektrisk for BMW 5 Series E61 LCI 530d

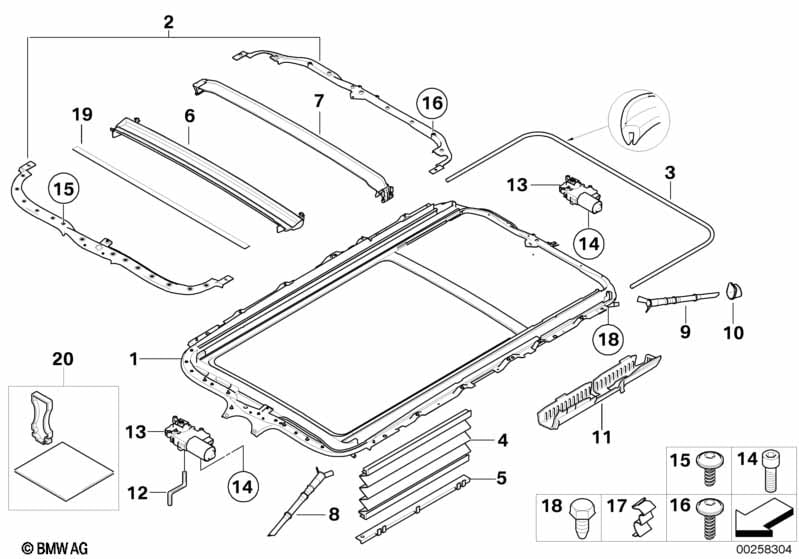

This Panoramatak elektrisk technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Panoramatak elektrisk |
S402A=Ja |
||||||||
| 01 | Panorama-glastak elektrisk | GRAU | 1 | 54107198974 | $2887.90 | Avslutad | Shop at ECS Tuning | |||
| 01 | Panorama-glastak elektrisk | BEIGE | 1 | 54107198975 | $2887.90 | Avslutad | Shop at ECS Tuning | |||
| 01 | Panorama-glastak elektrisk | ANTHRAZIT | 1 | 54107198980 | $2887.90 | Avslutad | Shop at ECS Tuning | |||
| 01 | Ram-panoramatak | 1 | 54107198981 | $1895.32 | Shop at ECS Tuning | |||||
| 01 | Panorama-glastak elektrisk | CREAMBEIGE | 1 | 54107199475 | $2887.90 | Avslutad | Shop at ECS Tuning | |||
| 01 | Ram-panoramatak | 1 | 54137184901 | $1858.56 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Täckplattor | 1 | 54137118853 | $72.28 | Shop at ECS Tuning | |||||
| 03 | Tätning runt om | L=4300 | 1 | 12/2008 | 54107430946 | Shop at ECS Tuning | ||||
| OBS! Beakta PuMA-åtgärden AG 20315810-01 | ||||||||||
| 03 | Tätning runt om | L=4090 | 1 | 12/2008 | 54107199533 | $30.68 | Avslutad | Shop at ECS Tuning | ||
| 04 | Veckad bälg | 2 | 54137075903 | $17.52 | Shop at ECS Tuning | |||||
| 05 | Damasklist | 1 | 54137127569 | $71.98 | Shop at ECS Tuning | |||||
| 06 | Vattenränna fram | 1 | 54137140779 | $29.87 | Shop at ECS Tuning | |||||
| 07 | Vattenränna bak | 1 | 54137127568 | $49.80 | Shop at ECS Tuning | |||||
| 08 | Adapter vattenavledningsslang fram | 1 | 54137130996 | Shop at ECS Tuning | ||||||
| Endast foer vänster sida | ||||||||||
| 08 | Vattenutloppslang fram | 1 | 54137000496 | $10.75 | Shop at ECS Tuning | |||||
| Endast foer hoeger sida | ||||||||||
| 08 | Vattenutloppslang fram | 1 | 54137000495 | $10.75 | Shop at ECS Tuning | |||||
| 09 | Vattenutloppslang bak | 2 | 54107209442 | $18.28 | Shop at ECS Tuning | |||||
| 10 | Ventil | 1 | 54137031130 | $0.54 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Lucka | 1 | 54137031131 | $0.54 | Shop at ECS Tuning | |||||
| 11 | Sil vattenutlopp | 2 | 54107297788 | Shop at ECS Tuning | ||||||
| 12 | Noedtillslagn.elekt.foenst.3elek.soltak | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 13 | Drivenhet taklucka | 2 | 67616922652 | $316.19 | Shop at ECS Tuning | |||||
| 14 | Linsskruv | M5X22 | X | 54107198613 | Shop at ECS Tuning | |||||
| 15 | Skruv | K40 3,9X10 | X | 54107198616 | $4.47 | Shop at ECS Tuning | ||||
| 16 | Skruv | K40X12 | X | 54107198612 | $1.09 | Shop at ECS Tuning | ||||
| 17 | Kabelhållare | 8 | 07/2007 | 54128193188 | $0.32 | Shop at ECS Tuning | ||||
| 18 | Sexkantskruv | M6X14,5 | 18 | 54107306686 | Avslutad | Shop at ECS Tuning | ||||
| Reparationsskruv | ||||||||||
| 18 | Reparationsskruv | ST-6,8X12,5 | 18 | 07149143635 | $2.62 | Shop at ECS Tuning | ||||
| 19 | Filtlist | 830X16X2 MM | 1 | 54137181349 | $5.85 | Shop at ECS Tuning | ||||
| 20 | Rengoeringsset | 1 | 54107306684 | Shop at ECS Tuning | ||||||
Notering
- Avslutad = delen tillverkas inte längre.
