Ventilationsmunstycke/galler for BMW 5 Series E39 525d

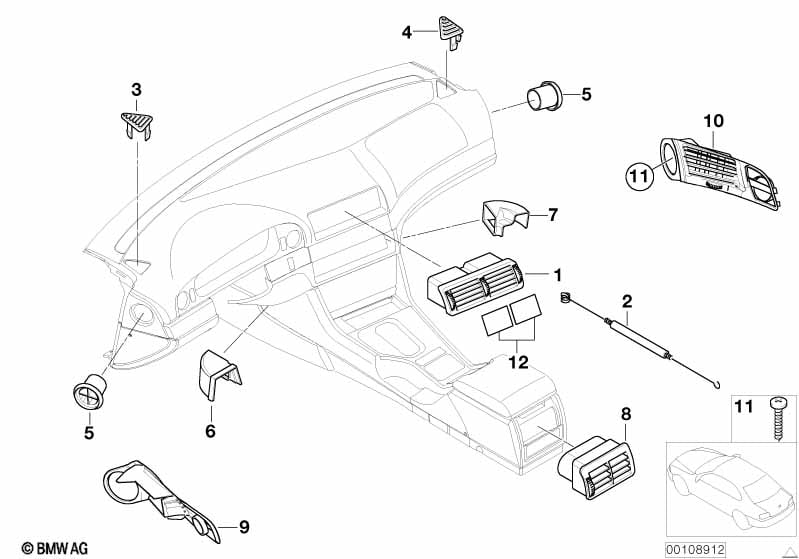

This Ventilationsmunstycke/galler technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Friskluftgrill mittre | SCHWARZ | 1 | 64228364021 | $81.32 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 01 | Friskluftgrill mittre | MARINEBLAU | 1 | 64228364022 | $81.32 | +stomme | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| 01 | Friskluftgrill mittre | DUNKELBEIGE | 1 | 64228364023 | $81.32 | +stomme | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| 01 | Friskluftgrill mittre | ENGLISCH GRUEN | 1 | 64228364024 | $81.32 | +stomme | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Bowdenkabel temperatur | 1 | 64118391800 | $9.08 | Shop at ECS Tuning | |||||
| 02 | Bowdenkabel temperatur | 1 | 64118391800 | $9.08 | Shop at ECS Tuning | |||||
| 03 | Plaat defrostermunstycke vaenster | SCHWARZ | 1 | 64228198971 | $14.82 | Shop at ECS Tuning | ||||
| 03 | Plaat defrostermunstycke vaenster | MARINEBLAU | 1 | 64228198973 | $15.40 | Avslutad | Shop at ECS Tuning | |||
| 03 | Plaat defrostermunstycke vaenster | DUNKELBEIGE | 1 | 64228198975 | $14.82 | Shop at ECS Tuning | ||||
| 03 | Plaat defrostermunstycke vaenster | ENGLISCH GRUEN | 1 | 64228198977 | $14.82 | Avslutad | Shop at ECS Tuning | |||
| 04 | Plaat defrostermunstycke hoeger | SCHWARZ | 1 | 64228198972 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Plaat defrostermunstycke hoeger | MARINEBLAU | 1 | 64228198974 | $15.40 | Avslutad | Shop at ECS Tuning | |||
| 04 | Plaat defrostermunstycke hoeger | DUNKELBEIGE | 1 | 64228198976 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Plaat defrostermunstycke hoeger | ENGLISCH GRUEN | 1 | 64228198978 | $14.82 | Avslutad | Shop at ECS Tuning | |||
| 05 | Munstycke foer doerrventilation | 2 | 64228159753 | $31.11 | Shop at ECS Tuning | |||||
| 06 | Uppvaermningskanal f fotutrymme vaenst. | 1 | 64118368031 | $5.52 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Uppvaermningskanal f fotutrymme hoeger | 1 | 64118368032 | $4.02 | Shop at ECS Tuning | |||||
| 08 | Bakre friskluftgrill | 1 | 09/1997 | 64228391182 | $85.66 | +stomme | Shop at ECS Tuning | |||
| 08 | Bakre friskluftgrill | 1 | 09/1997 | 64228376150 | $139.23 | Shop at ECS Tuning | ||||
| För fordon med Mellersta konsol mot baksäte PASSAR ENDASTI TILL BLAESTER BAK |
S445A=Ja |
|||||||||
| 08 | Bakre friskluftgrill | 1 | 03/1999 | 64228376465 | $192.59 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 09 | Friskluftgrill vänster | SCHWARZ | 1 | 64228364029 | $101.98 | Shop at ECS Tuning | ||||
| 09 | Friskluftgrill vänster | MARINEBLAU | 1 | 64228364031 | $101.98 | Avslutad | Shop at ECS Tuning | |||
| 09 | Friskluftgrill vänster | DUNKELBEIGE | 1 | 64228364033 | $101.98 | Shop at ECS Tuning | ||||
| 09 | Friskluftgrill vänster | DUNKELGRUEN | 1 | 64228364035 | $101.98 | Avslutad | Shop at ECS Tuning | |||
| 10 | Friskluftgrill höger | SCHWARZ | 1 | 64228364030 | $101.98 | Shop at ECS Tuning | ||||
| 10 | Friskluftgrill höger | MARINEBLAU | 1 | 64228364032 | $101.98 | Shop at ECS Tuning | ||||
| 10 | Friskluftgrill höger | DUNKELBEIGE | 1 | 64228364034 | $101.98 | Shop at ECS Tuning | ||||
| 10 | Friskluftgrill höger | DUNKELGRUEN | 1 | 64228364036 | $101.98 | Shop at ECS Tuning | ||||
| 11 | Plaatskruv | ST3,5X19-Z1 | 1 | 07119901142 | $0.38 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
