Vattenbentil/Vattenslang IHKA High for BMW 5 Series E61 LCI 520d (2009)

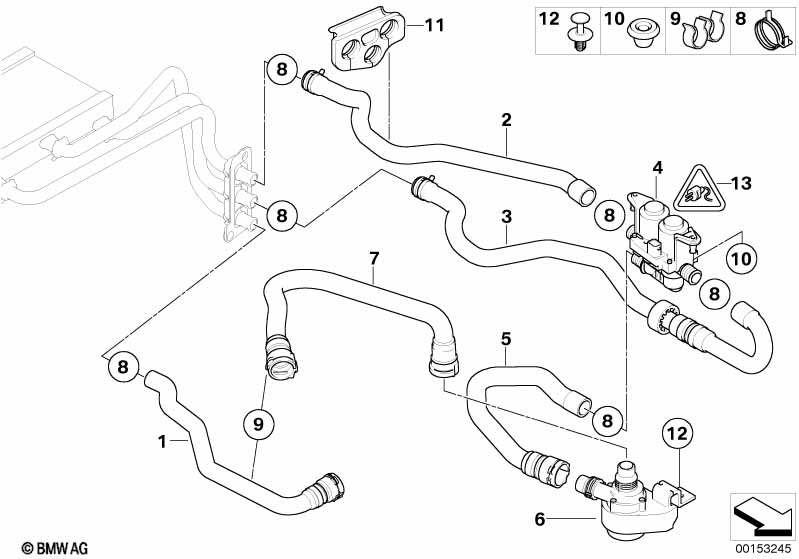

This Vattenbentil/Vattenslang IHKA High technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Klimatautomatik och Parkeringsvärme |
S534A=Ja S536A=Nej |
||||||||
| 01 | Slang f vaermeelem.och motoraatergaang | 1 | 64216985736 | Shop at ECS Tuning | ||||||
| 02 | Slang f vattenventil och vaermeelem. | 1 | 64216910757 | $14.84 | Shop at ECS Tuning | |||||
| 03 | Slang f vattenventil och vaermeelem. | 1 | 64216910758 | $22.93 | Shop at ECS Tuning | |||||
| 04 | Vattenventil | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 05 | Slang f tillsatsvattenpump/vattenventil | 1 | 64216917699 | Shop at ECS Tuning | ||||||
| 06 | Tillsatsvattenpump | 1 | 64216917700 | Shop at ECS Tuning | ||||||
| Slang med två snabbkopplingar | ||||||||||
| 07 | Slang extra vattenpump - motortillopp | 1 | 64216985734 | Shop at ECS Tuning | ||||||
| 08 | Slangklaemma | D=27MM | 6 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 09 | Slangfaeste | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 09 | Slangfaeste | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 10 | Bussning | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 11 | Bussning | 1 | 64216915171 | $7.25 | Shop at ECS Tuning | |||||
| 12 | Expandernit | D = 8MM | 1 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Universal stickkontaktkåpa utan kod | 2 POL. | 1 | 05/2010 | 61138795954 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | 2 | 05/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Hylskontakt MQS ELA med kabel | 0,35-0,5 MM² AG | 2 | 05/2010 | 61130056961 | Shop at ECS Tuning | ||||
| 13 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Hylskontakt MQS ELA med kabel | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
