John Cooper Works Tuningkit for BMW MINI R50 Cooper (2000)

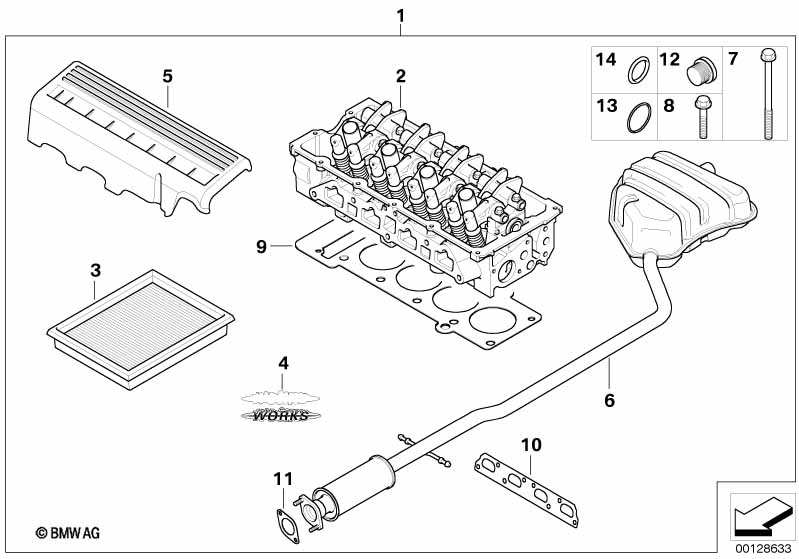

This John Cooper Works Tuningkit technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pokyn: sériové náhradní díly platí také pro John Cooper Works s výjimkou zde uvedených montážních dílů. Pro vozidla s Automatická převodovka |
S205A=Ne |
||||||||
| 01 | Tuningová sada | J. COOPER WORKS | 1 | 06/2004 | 11120302672 | $3561.00 | UKONČENO, +core | Shop at ECS Tuning | ||
| 02 | Hlava válců | J. COOPER WORKS | 1 | 06/2004 | 11120300816 | $3224.00 | UKONČENO, +core | Shop at ECS Tuning | ||
| 03 | Vložka vzduchového filtru | J. COOPER WORKS | 1 | 06/2004 | 13720400734 | $107.95 | Shop at ECS Tuning | |||
| 04 | Sada loga | J. COOPER WORKS | 1 | 51140301253 | $153.95 | UKONČENO, +core | Shop at ECS Tuning | |||
| 04 | Logo | J. COOPER WORKS | 2 | 51140306114 | $73.00 | UKONČENO, +core | Shop at ECS Tuning | |||
| 04 | Nápis zadní | J. COOPER WORKS | 1 | 51147175102 | $106.90 | Shop at ECS Tuning | ||||
| 05 | Kryt vstřikovací trubka | J. COOPER WORKS | 1 | 06/2004 | 13530301797 | $61.50 | UKONČENO, +core | Shop at ECS Tuning | ||
| 07 | Šroub s válcovou hlavou | M10X150MM | 10 | 07131487226 | $3.82 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub s podložkou | M8X45 | 2 | 11317829911 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Těsnění hlavy válců bez azbestu | 0,65MM | 1 | 11127508543 | $66.77 | Shop at ECS Tuning | ||||
| 10 | Těsnění bez azbestu | 1 | 11621174968 | $10.94 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Šroub | M8X30 | 8 | 07136800269 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Ploché těsnění | 1 | 18111170941 | $8.46 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Šestihranná matice s přírubou | M10 | 2 | 07130757758 | $1.09 | Shop at ECS Tuning | ||||
| 12 | Šroubový uzávěr s těsnicím kroužkem | 1 | 11317562528 | $7.20 | Shop at ECS Tuning | |||||
| 13 | O-kroužek | 2 | 11317514982 | $0.88 | Shop at ECS Tuning | |||||
| 14 | O-kroužek | 1 | 12147514984 | $3.61 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
