BMW Junior Seat I-II / Junior Seat III for BMW 5 Series E28 520i (1988)

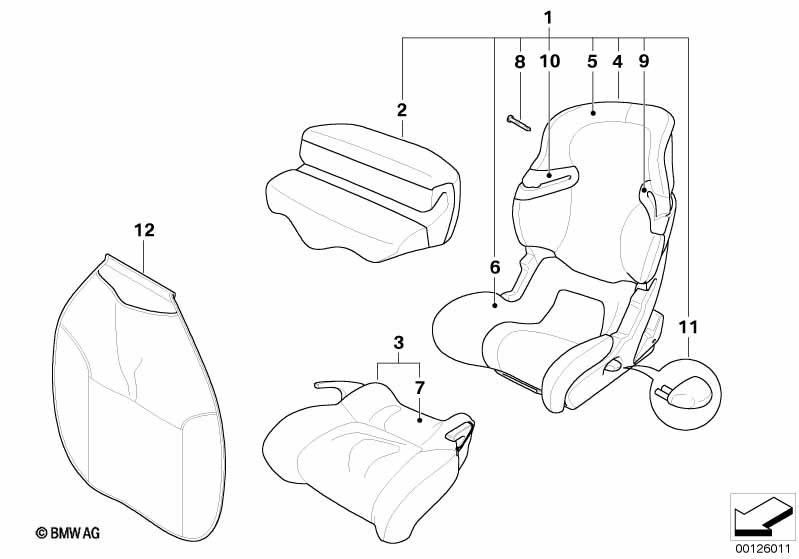

This BMW Junior Seat I-II / Junior Seat III technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Schváleno dle ECE-R 44.03 „univerzální“. Není dovoleno v Austrálii, Kanadě, USA. |
||||||||||
| 01 | BMW dětská sedačka Junior Seat I-II | STOFF BLAU | 1 | 82220017059 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | BMW dětská sedačka Junior Seat I-II | STOFF GRAU-BLAU | 1 | 82220141997 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | BMW dětská sedačka Junior Seat I-II | GRAU-ZIMT | 1 | 82220142592 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | F1 dětská sedačka Junior Seat I-II | 1 | 82220148484 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 02 | BMW dět.sed.Junior Seat bezp. zách. stůl | STOFF BLAU | 1 | 82220017039 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | BMW dět.sed.Junior Seat bezp. zách. stůl | GRAU | 1 | 82220142594 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | BMW dět.sed.Junior Seat bezp. zách. stůl | F1 / DUNKELBLAU | 1 | 82220148778 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 03 | BMW dětská sedačka Junior Seat III | GRAU-BLAU | 1 | 82222154128 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 03 | BMW dětská sedačka Junior Seat III | GRAU-ZIMT | 1 | 82222154129 | UKONČENO, +core | Shop at ECS Tuning | ||||
| Schváleno dle ECE-R 44.03 „univerzální“. Není dovoleno v Austrálii, Kanadě, USA. |
||||||||||
| 04 | BMW dětská sedačka Junior Seat II | STOFF BLAU | 1 | 82220017044 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | BMW dětská sedačka Junior Seat II | STOFF GRAU-BLAU | 1 | 82220142000 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | BMW dětská sedačka Junior Seat II | GRAU-ZIMT | 1 | 82220142593 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | F1 dětská sedačka Junior Seat II | 1 | 82220148486 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 04 | BMW dětská sedačka Junior Seat II | STOFF GRAU-BLAU | 1 | 82222154124 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | BMW dětská sedačka Junior Seat II | STOFF GRAU-ZIMT | 1 | 82222154125 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | BMW dětská sedačka Junior Seat II | FORMEL 1 | 1 | 82222154126 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 05 | Potah opěradlo BMW Junior Seat | STOFF BLAU | 1 | 82220017042 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 05 | Potah opěradlo BMW Junior Seat | GRAU-BLAU | 1 | 82220142595 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 05 | Potah opěradlo BMW Junior Seat | GRAU-ZIMT | 1 | 82220142596 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 05 | Potah opěradlo BMW Junior Seat | STOFF F1 DESIGN | 1 | 82220148779 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Potah polštář sed. BMW Junior Seat I-II | STOFF BLAU | 1 | 82220017045 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 06 | Potah polštář sedadla BMW Junior Seat | GRAU-ZIMT | 1 | 82220142312 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 06 | Potah polštář sedadla BMW Junior Seat | GRAU-BLAU | 1 | 82220144074 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 06 | Potah polštář sedadla BMW Junior Seat | STOFF F1 DESIGN | 1 | 82220148780 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Potah polštář sed. BMW Junior Seat III | STOFF BLAU | 1 | 82220010113 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 07 | Potah polštář sed. BMW Junior Seat III | GRAU-BLAU | 1 | 82220142598 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 07 | Potah polštář sed. BMW Junior Seat III | GRAU-ZIMT | 1 | 82220142599 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 08 | Quicklock | 1 | 82220139315 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Vedení pásu levé | 1 | 82220139316 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Vedení pásu pravé | 1 | 82220139317 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Ovládací tlačítko | 1 | 82220139319 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Ochrana pro opěradlo sedadla | 1 | 82129408961 | UKONČENO | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
