Box na zavazadla for BMW MINI R50 Cooper (2000)

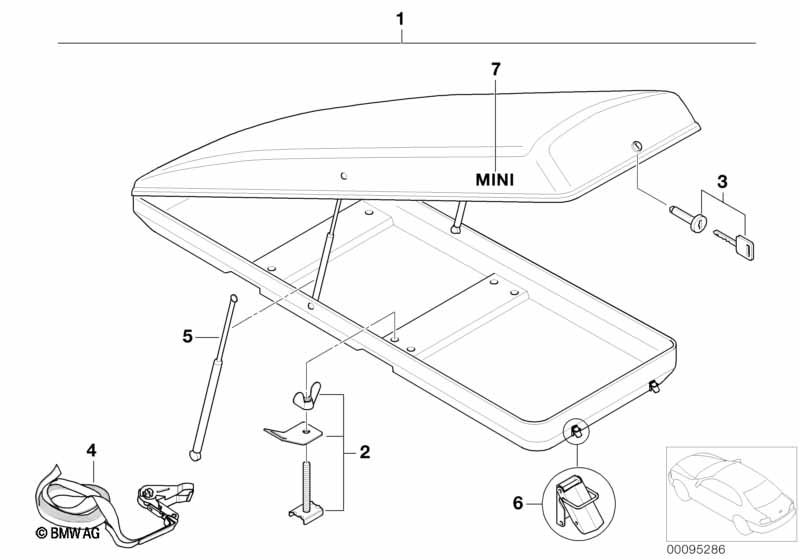

This Box na zavazadla technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Box na zavazadla | WEISS | 1 | 82129401047 | $1266.66 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Adaptér | 1 | 82129401180 | $47.25 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Zámek vč. klíč | 1 | 82129401122 | $34.25 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Napínací pásy střešní box | 1 | 82129401124 | $21.00 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Plynová vzpěra | 2 | 82129401485 | $39.25 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Stahovací uzávěr střešní box | 2 | 82129401528 | $18.25 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Nápis | MINI | 2 | 51140142575 | $8.25 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Box na zavazadla?
- This technical diagram illustrates the Box na zavazadla within the Dod.montáž / převýbava / příslušenství group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Box na zavazadla (Part #82129401047).
- Which models use the hardware listed in this Box na zavazadla?
- The hardware and components featured in the Box na zavazadla are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Box na zavazadla (82129401047) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Box na zavazadla assembly?
- Each item in the Box na zavazadla corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Box na zavazadla by locating its position on the schematic, which then links to the official BMW part number 82129401047 for the Dod.montáž / převýbava / příslušenství section.
