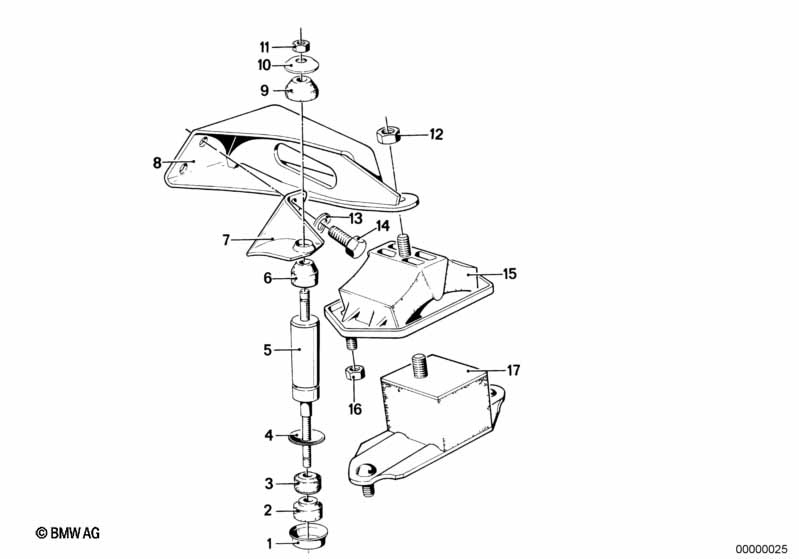

Uložení motoru/tlumič motoru for BMW 7 Series E23 733i (1979)
This Uložení motoru/tlumič motoru technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Víko | 2 | 09/1979 | 11811246375 | $9.76 | Shop at ECS Tuning | ||||
| 02 | Kroužek | 2 | 09/1979 | 11811246374 | $1.25 | Shop at ECS Tuning | ||||
| 03 | Kroužek | 2 | 09/1979 | 11811246385 | $1.25 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kroužek | 2 | 09/1979 | 11811246374 | $1.25 | Shop at ECS Tuning | ||||
| 04 | Podložka | 2 | 09/1979 | 11811246296 | $0.32 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Tlumič motoru | 2 | 09/1979 | 11811246285 | $76.21 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Kroužek | 2 | 09/1979 | 11811246284 | $3.68 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Přídržná deska | 1 | 09/1979 | 11811246288 | $13.62 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Nosný třmen pravý | 1 | 09/1979 | 11811246328 | $45.20 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Kroužek | 2 | 09/1979 | 11811245365 | $14.46 | Shop at ECS Tuning | ||||
| 10 | Víko | 2 | 09/1979 | 11811246297 | $1.97 | Shop at ECS Tuning | ||||
| 11 | Šestihranná matice | M6-8-ZNS3 | 4 | 09/1979 | 07129904876 | $0.16 | Shop at ECS Tuning | |||
| 11 | Šestihranná matice samojisticí | M6 ZNNIV SI | 4 | 09/1979 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice samojisticí | M10 | 3 | 09/1979 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 13 | Pružná podložka | B10-ZNS3 | 4 | 09/1979 | 07119904463 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M10X25 8.8 | 2 | 09/1979 | 07119908569 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M10X20-10.9-PHR | 2 | 09/1979 | 07119913830 | $0.43 | Shop at ECS Tuning | |||
| 14 | Šestihranný šroub | M10X25-8.8 ZN | 2 | 09/1979 | 07119913834 | $0.71 | Shop at ECS Tuning | |||
| 15 | Pryžové ložisko pravé | 1 | 09/1979 | 11811246176 | $69.19 | Shop at ECS Tuning | ||||
| 16 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 09/1979 | 07129906196 | $1.60 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
