Uložení motoru/tlumič motoru for BMW 5 Series E28 525i (1987)
This Uložení motoru/tlumič motoru technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Nosný třmen pravý | 1 | 09/1984 | 11811175990 | $109.54 | Shop at ECS Tuning | ||||
| 03 | Nosný třmen levý | 1 | 11811175591 | $34.40 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Pružná podložka | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M8X40-ZNNIV SI | 4 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | B10-ZNS3 | 6 | 07119904463 | Shop at ECS Tuning | |||||

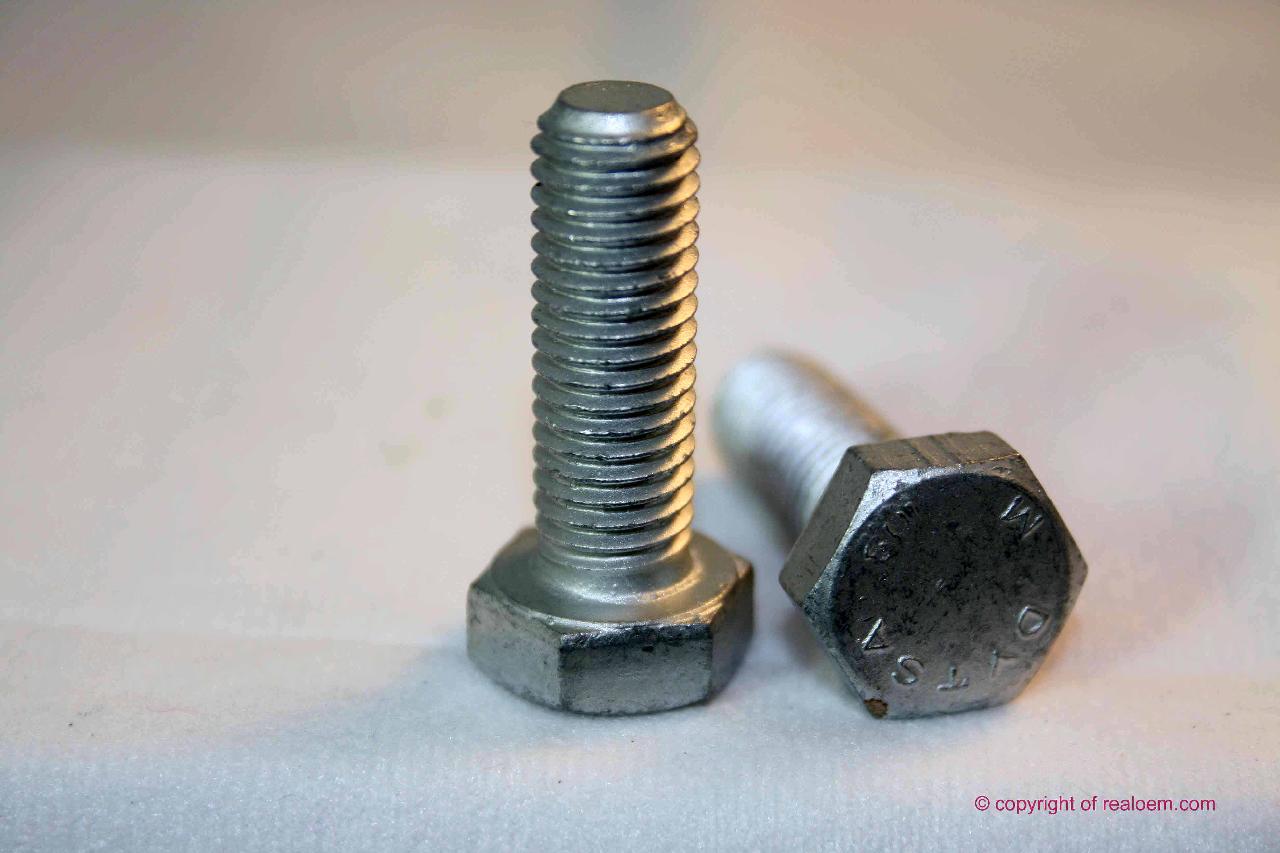

| 07 | Šestihranný šroub | M10X30 | 4 | 12/1987 | 07119900581 | $0.71 | UKONČENO | Shop at ECS Tuning | ||
| Pro vozidla s Provedení Švýcarsko nebo Provedení Austrálie nebo Provedení Švédsko |
L804A=Ano L810A=Ano V010A=Ano |
|||||||||
| 07 | Šestihranný šroub | M10X30-10.9ZNS3 | 4 | 07119902912 | Shop at ECS Tuning | |||||
| 08 | Pryžové ložisko | 2 | 11811128932 | $50.53 | Shop at ECS Tuning | |||||
| 09 | Podložka | A10,5X22 | 2 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Šestihranná matice | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
