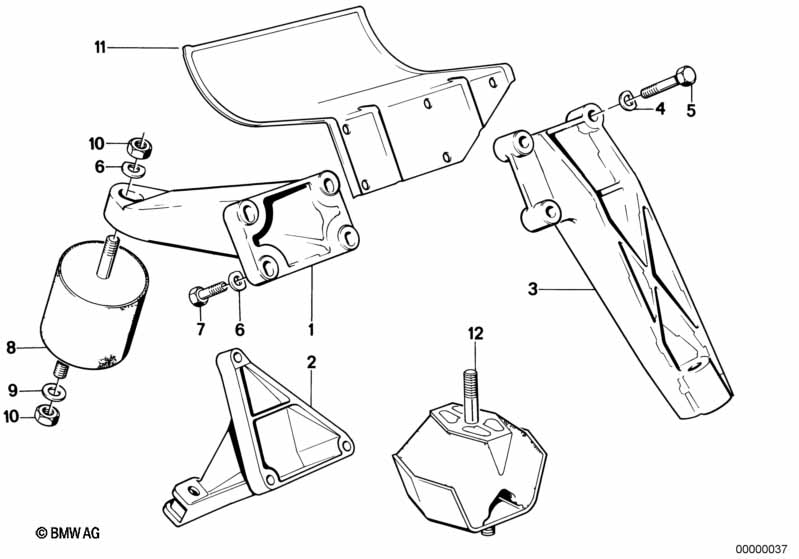

Uložení motoru/tlumič motoru for BMW 6 Series E24 M6 (1988)
This Uložení motoru/tlumič motoru technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosný třmen pravý | 1 | 09/1982 | 11811175592 | $34.40 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Nosný třmen levý | 1 | 09/1982 | 11811175591 | $34.40 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Pružná podložka | 8,4X15-ZNS3 | 4 | 09/1982 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub | M8X40-ZNNIV SI | 4 | 09/1982 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 06 | Pružná podložka | B10-ZNS3 | 6 | 09/1982 | 07119904463 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub | M10X16 | 1 | 09/1982 | 07119914121 | $0.41 | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub s podložkou | M10X35-Z3 | 3 | 04/1984 | 07119913917 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Pryžové ložisko | 1 | 09/1982 | 11811128932 | $50.53 | Shop at ECS Tuning | ||||
| 08 | Pryžové ložisko | 1 | 09/1982 | 11812225201 | $67.28 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Pryžové ložisko | 1 | 09/1982 | 11811128932 | $50.53 | Shop at ECS Tuning | ||||
| vhodné pouze pro | ||||||||||
| -- | Nosný třmen levý | X | 09/1982 | 11811175591 | $34.40 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Pryžové ložisko | 1 | 09/1982 | 11812225201 | $67.28 | UKONČENO | Shop at ECS Tuning | |||
| vhodné pouze pro | ||||||||||
| -- | Nosný třmen pravý | X | 09/1982 | 11811175592 | $34.40 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Podložka | A10,5X22 | 2 | 09/1982 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 10 | Šestihranná matice | M10-8-ZNS | 4 | 09/1982 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 11 | Tepelný ochranný kryt | 1 | 09/1982 | 11812225200 | $30.10 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Pryžové ložisko | 1 | 09/1982 | 11812225201 | $67.28 | UKONČENO | Shop at ECS Tuning | |||
| vhodné pouze pro | ||||||||||
| -- | Nosný třmen pravý | X | 09/1982 | 11811175592 | $34.40 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
