Blok motoru for BMW 3 Series E21 316 (1982)

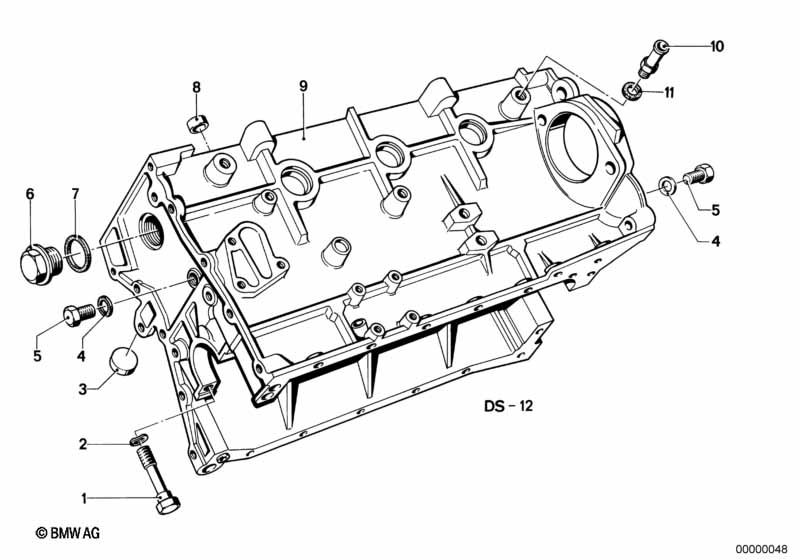

This Blok motoru technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub | M10X75 | X | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 02 | Pružná podložka | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Uzavírací víko | D=36MM | 8 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Šroubový uzávěr | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 06 | Šroubový uzávěr | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 07 | Těsnicí kroužek | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Lícovaná objímka | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Blok motoru s pístem | 89MM | 1 | 09/1980 | 11111274470 | $1517.76 | UKONČENO | Shop at ECS Tuning | ||
| 10 | Hrdlo šroubení | M10 | 1 | 11111250587 | $10.25 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Hrdlo šroubení | M12 | 1 | 11111270350 | $6.78 | Shop at ECS Tuning | ||||
| 11 | Těsnicí kroužek | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Těsnicí kroužek | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Sada těsnění kliková skříň bez azbestu | M10 B16/B18 | 1 | 11111734114 | $94.05 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
