Blok motoru for BMW 3 Series E30 318i (1987)

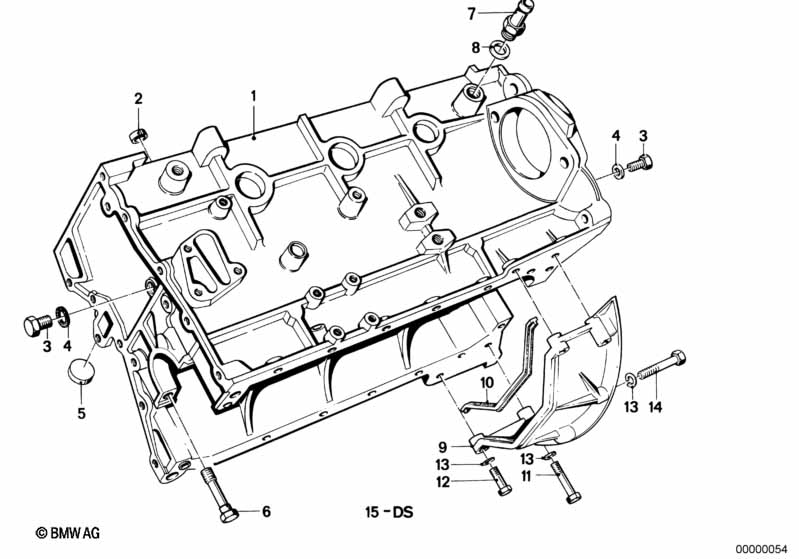

This Blok motoru technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok motoru s pístem | 1 | 11111709667 | $1517.76 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | ND-Blok motoru s písty | 1 | 09/1983 | 11111289165 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Blok motoru bez pístu | D=89MM | 1 | 09/1983 | 11111284261 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Provedení Švýcarsko nebo Provedení Austrálie nebo Provedení Švédsko |
L804A=Ano L810A=Ano V010A=Ano |
|||||||||
| 01 | ND-Blok motoru s písty | 1 | 01/1984 | 11111289165 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Blok motoru bez pístu | D=89MM | 1 | 01/1984 | 11111284261 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lícovaná objímka | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Šroubový uzávěr | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Těsnicí kroužek | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Uzavírací víko | D=36MM | 8 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M10X75 | X | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 07 | Hrdlo šroubení | M12 | 1 | 09/1983 | 11121740396 | $6.85 | Shop at ECS Tuning | |||
| Pro vozidla s Provedení Švýcarsko nebo Provedení Austrálie nebo Provedení Švédsko |
L804A=Ano L810A=Ano V010A=Ano |
|||||||||
| 07 | Hrdlo šroubení | M12 | 1 | 01/1984 | 11121740396 | $6.85 | Shop at ECS Tuning | |||
| 08 | Těsnicí kroužek | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Výztužná skořepina | 1 | 11141277030 | $73.86 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Pryžové těsnění | 305MM | 1 | 11141287846 | $6.48 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Šestihranný šroub | M8X65 | 2 | 07119903018 | Shop at ECS Tuning | |||||
| 12 | Šestihranný šroub | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Pružná podložka | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | ASA-Šroub | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 15 | Sada těsnění kliková skříň bez azbestu | 1 | 11111727985 | $115.63 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
