Pouzdro krytu řetězu for BMW 3 Series E21 318i (1982)

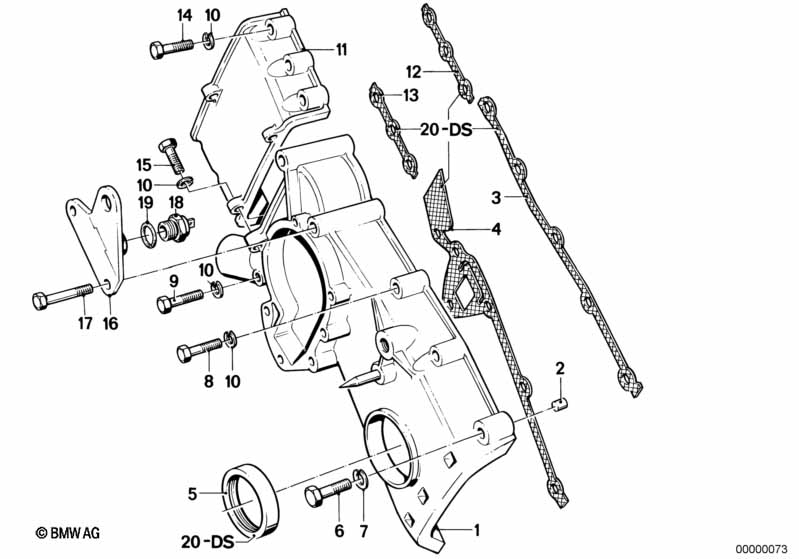

This Pouzdro krytu řetězu technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uzavírací víko | 1 | 11141276440 | $158.84 | Shop at ECS Tuning | |||||
| 02 | Lícovaná objímka | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Těsnění levé bez azbestu | 1 | 11141727981 | $2.03 | Shop at ECS Tuning | |||||
| 04 | Těsnění bez azbestu | 1 | 11141727980 | $2.72 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Hřídelový těsnicí kroužek | 35X55X12 | 1 | 11141709629 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Pružná podložka | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M6X35-8.8-ZNS3 | 8 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X40 | 1 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka černá | B6-ZN | X | 12/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Podložka | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka | B6-ZNS3 | X | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Víko | RÄDERKASTEN OBE | 1 | 11140604100 | $49.11 | Shop at ECS Tuning | ||||
| 12 | Těsnění bez azbestu | 1 | 11141727978 | $1.37 | Shop at ECS Tuning | |||||
| 13 | Těsnění bez azbestu | 1 | 11141727979 | $1.37 | Shop at ECS Tuning | |||||
| 14 | Šestihranný šroub | M6X35-8.8-ZNS3 | 6 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Závěsný hák | 1 | 11141274102 | $10.25 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Šestihranný šroub | M8X75-8.8-ZNS3 | 2 | 07119906028 | Shop at ECS Tuning | |||||
| 18 | Teplotní spínač | 1 | 12631279719 | Shop at ECS Tuning | ||||||
| 19 | Těsnicí kroužek | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Sada těsnění uzavírací víko bez azbestu | 1 | 11141727986 | $18.65 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
