Olejová vana/měrka oleje for BMW 5 Series E12 528 (1977)

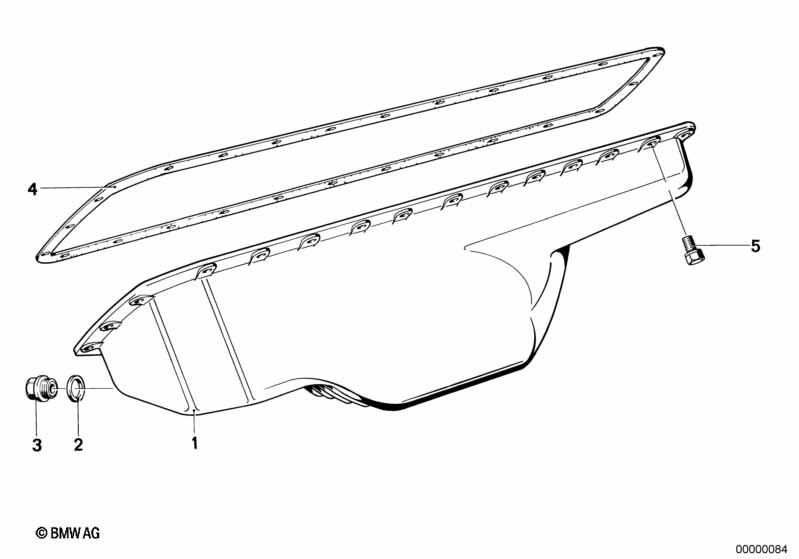

This Olejová vana/měrka oleje technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana | 1 | 11131260791 | $383.96 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Těsnicí kroužek | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 02 | Těsnicí kroužek | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Šroubový uzávěr | M22X1,5 | 1 | 11131250089 | $5.90 | Shop at ECS Tuning | ||||
| 03 | Šroubový uzávěr | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Těsnění bez azbestu | 1 | 11131315085 | $18.00 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Olejová vana/měrka oleje?
- This technical diagram illustrates the Olejová vana/měrka oleje within the Motor group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Olejová vana (Part #11131260791).
- Which models use the hardware listed in this Olejová vana/měrka oleje?
- The hardware and components featured in the Olejová vana/měrka oleje are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Olejová vana (11131260791) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Olejová vana/měrka oleje assembly?
- Each item in the Olejová vana/měrka oleje corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Olejová vana by locating its position on the schematic, which then links to the official BMW part number 11131260791 for the Motor section.
