Víko hlavy válců for BMW 5 Series E12 528 (1977)

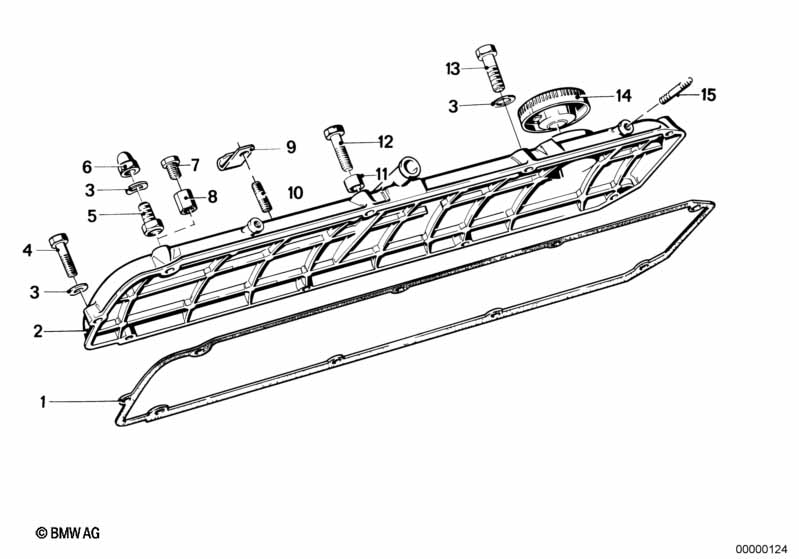

This Víko hlavy válců technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Těsnění bez azbestu | 1 | 11121730936 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Víko hlavy válců | 1 | 11121276593 | $188.46 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Pružná podložka černá | B6-ZN | 9 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Uzavřená matice | M6 | 8 | 11617549043 | $3.23 | Shop at ECS Tuning | ||||
| 09 | Spona | 1 | 11530623124 | $0.21 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Závrtný šroub | M6X25-ZN | 2 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Distanční pouzdro | 2 | 61111363376 | $2.00 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub s přírubou | M6X55 | 2 | 07119903174 | $0.74 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Šestihranný šroub | M6X40 | 8 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 14 | Uzavírací víko olejové plnicí hrdlo | 1 | 11121716993 | $5.36 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Víko hlavy válců?
- This technical diagram illustrates the Víko hlavy válců within the Motor group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Těsnění bez azbestu (Part #11121730936).
- Which models use the hardware listed in this Víko hlavy válců?
- The hardware and components featured in the Víko hlavy válců are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Těsnění bez azbestu (11121730936) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Víko hlavy válců assembly?
- Each item in the Víko hlavy válců corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Těsnění bez azbestu by locating its position on the schematic, which then links to the official BMW part number 11121730936 for the Motor section.
