Klínový řemenový pohon for BMW 3 Series E30 M3 (1991)

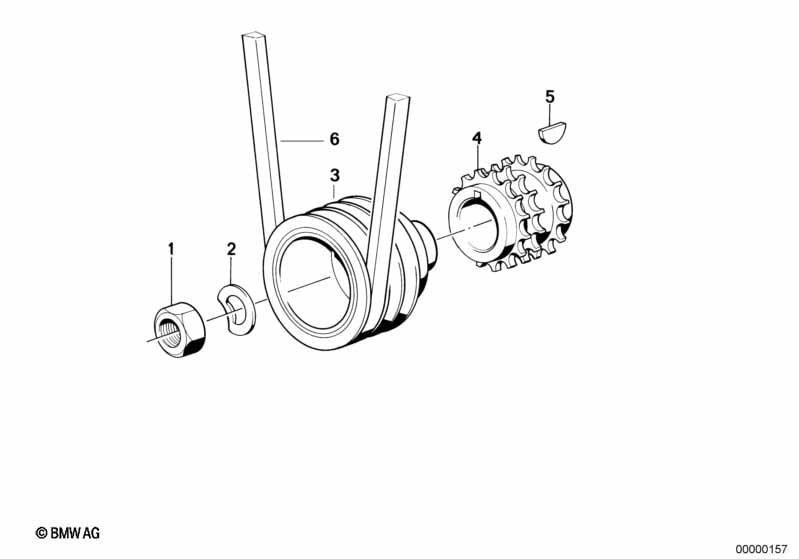

This Klínový řemenový pohon technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Matice s nákružkem | 1 | 11231308128 | $8.08 | Shop at ECS Tuning | |||||
| 02 | Podložka | 1 | 11231308295 | $9.86 | Shop at ECS Tuning | |||||
| 03 | Tlumič kmitů | 1 | 11231308577 | $692.63 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Řetězové kolo | 1 | 11211308467 | $85.41 | Shop at ECS Tuning | |||||
| 05 | Kotoučová pružina | 4X6,5 | 1 | 07119951461 | $0.87 | Shop at ECS Tuning | ||||
| 06 | Klínový řemen | 9,5X865 SRC | 1 | 11231709638 | $7.71 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Klínový řemenový pohon?
- This technical diagram illustrates the Klínový řemenový pohon within the Motor group for the 3 Series E30 M3 produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Matice s nákružkem (Part #11231308128).
- Which models use the hardware listed in this Klínový řemenový pohon?
- The hardware and components featured in the Klínový řemenový pohon are specific to the 3 Series E30 M3 produced during 1991. These technical specifications ensure that parts like the Matice s nákružkem (11231308128) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Klínový řemenový pohon assembly?
- Each item in the Klínový řemenový pohon corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Matice s nákružkem by locating its position on the schematic, which then links to the official BMW part number 11231308128 for the Motor section.
