Rozvod ventilů-vačkový hřídel/mazání for BMW 3 Series E36 318i (1994)

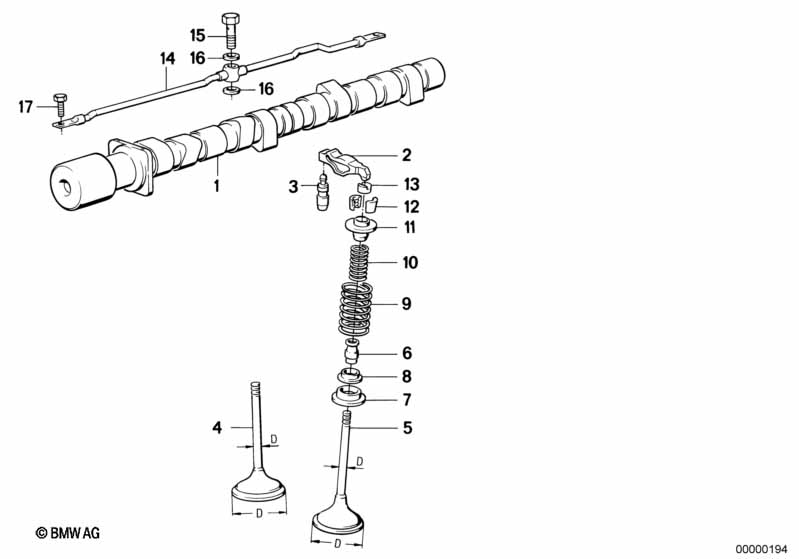

This Rozvod ventilů-vačkový hřídel/mazání technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vačkový hřídel | 1 | 11311709580 | $476.19 | Shop at ECS Tuning | |||||
| 02 | Vlečná páka | 8 | 11331709063 | $55.08 | Shop at ECS Tuning | |||||
| 03 | Vyrovnávací prvek | 8 | 11331712010 | $32.50 | Shop at ECS Tuning | |||||
| 04 | Vstupní ventil | 42,0/6,94MM | 4 | 11341727358 | $32.42 | Shop at ECS Tuning | ||||
| 04 | Vstupní ventil s přídavkem dříku +0,1 mm | 42,0/7,10MM | 4 | 11341727359 | $44.76 | Shop at ECS Tuning | ||||
| 04 | Vstupní ventil s přídavkem dříku +0,2 mm | 42,0/7,20MM | 4 | 11341727360 | $86.49 | Shop at ECS Tuning | ||||
| 05 | Vypouštěcí ventil | 36,0/6,96MM | 4 | 11341717878 | $44.40 | Shop at ECS Tuning | ||||
| 05 | Výfuk. ventil s přídavkem dříku +0,1 mm | 36,0/7,10MM | 4 | 11341727353 | $177.20 | Shop at ECS Tuning | ||||
| 05 | Výfuk. ventil s přídavkem dříku +0,2 mm | 36,0/7,20MM | 4 | 11341727354 | $177.20 | Shop at ECS Tuning | ||||
| 06 | Opravná sada těsnění ventilového dříku | 1 | 11349059171 | $35.29 | Shop at ECS Tuning | |||||
| 07 | Sedlo pružiny dolní | 8 | 11341726969 | $3.77 | Shop at ECS Tuning | |||||
| 08 | Sedlo pružiny dolní | 8 | 11341722544 | $3.77 | Shop at ECS Tuning | |||||
| 09 | Ventilová pružina | 8 | 11341721007 | $4.35 | Shop at ECS Tuning | |||||
| 10 | Ventilová pružina | 8 | 11341721006 | $3.79 | Shop at ECS Tuning | |||||
| 11 | Sedlo pružiny horní | 8 | 11341714621 | $3.77 | Shop at ECS Tuning | |||||
| 12 | Ventilový klínek | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 13 | Tlačný prvek | 8 | 11331727202 | $4.70 | Shop at ECS Tuning | |||||
| 14 | Olejové vedení | 1 | 11421727054 | $25.50 | Shop at ECS Tuning | |||||
| 15 | Dutý šroub | M8X1 | 1 | 11421727600 | $1.58 | Shop at ECS Tuning | ||||
| 16 | Těsnicí kroužek | A08X11,5-CU | 2 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Šestihranný šroub | M5X 12MM | 2 | 07119905138 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Rozvod ventilů-vačkový hřídel/mazání?
- This technical diagram illustrates the Rozvod ventilů-vačkový hřídel/mazání within the Motor group for the 3 Series E36 318i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Vačkový hřídel (Part #11311709580).
- Which models use the hardware listed in this Rozvod ventilů-vačkový hřídel/mazání?
- The hardware and components featured in the Rozvod ventilů-vačkový hřídel/mazání are specific to the 3 Series E36 318i produced during 1994. These technical specifications ensure that parts like the Vačkový hřídel (11311709580) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rozvod ventilů-vačkový hřídel/mazání assembly?
- Each item in the Rozvod ventilů-vačkový hřídel/mazání corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Vačkový hřídel by locating its position on the schematic, which then links to the official BMW part number 11311709580 for the Motor section.
