Podtlakové ovládání-recirk.výfuk.plynů for BMW 7 Series E23 728i

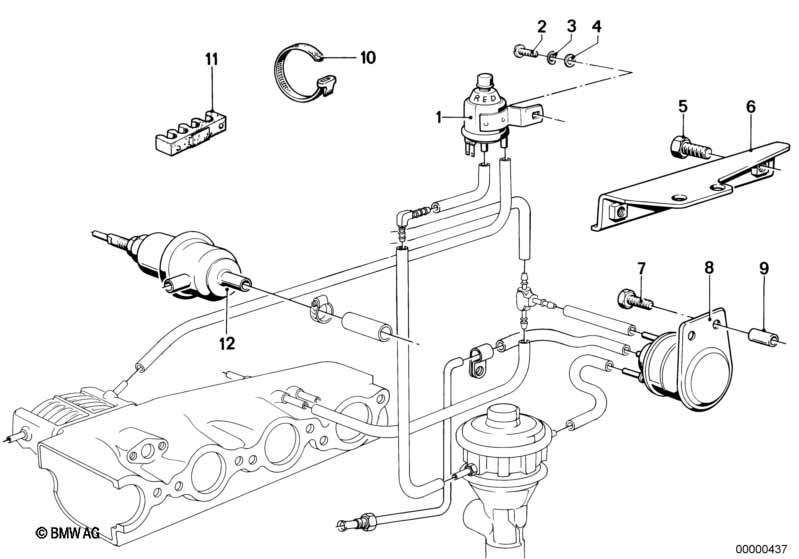

This Podtlakové ovládání-recirk.výfuk.plynů technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Provedení Austrálie nebo Provedení Švédsko |
L810A=Ano V010A=Ano |
||||||||
| 01 | Elektrický přepínací ventil červený | 1 | 09/1978 | 11741265877 | $58.40 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Šestihranný šroub | M5X10 | 1 | 09/1978 | 07119913218 | $0.12 | Shop at ECS Tuning | |||
| 03 | Pružná podložka | B5 | 1 | 09/1978 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 04 | Podložka | 10X5,3X1-200 HV | 1 | 09/1978 | 07119904206 | Shop at ECS Tuning | ||||
| 04 | Podložka | 5.3-140 HV-ZNS | 1 | 09/1978 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub s podložkou | M6X16-SB-Z3-1 | 2 | 09/1978 | 07119915063 | $0.43 | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub | M5X30-8.8-ZNS | 2 | 09/1978 | 07119913925 | $1.74 | Shop at ECS Tuning | |||
| 08 | Měnič tlaku | 1 | 09/1978 | 11741267975 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Distanční objímka | 2 | 09/1978 | 11741259966 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Svorka | 2 | 09/1978 | 11731259204 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Podtlakový omezovač | 1 | 09/1978 | 11741260976 | $106.14 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
