Chladicí systém-vedení vodních hadic for BMW 3 Series E36 320i

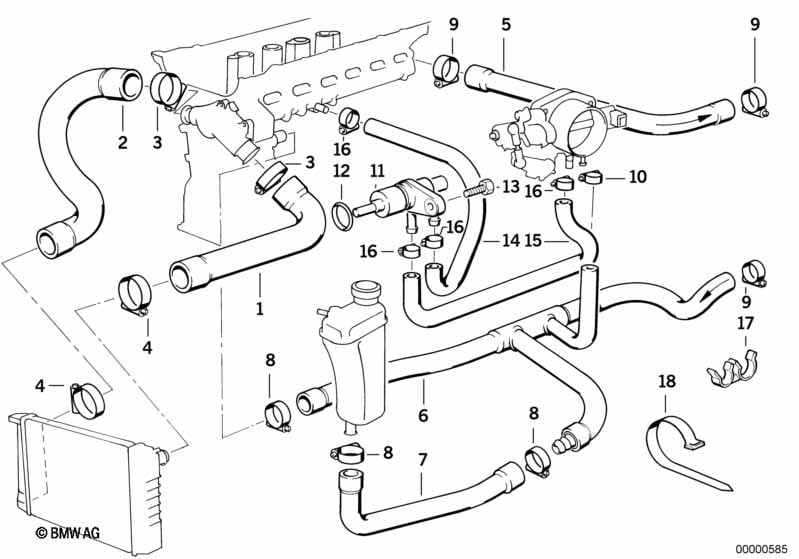

This Chladicí systém-vedení vodních hadic technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Japonsko nebo Provedení Austrálie nebo Provedení pro země s teplým podnebím |
L807A=Ano L810A=Ano S823A=Ano |
|||||||||
| 01 | Vodní hadice | 1 | 11531708499 | $22.64 | Shop at ECS Tuning | |||||
| 02 | Vodní hadice | 1 | 11531726344 | $26.42 | +core | Shop at ECS Tuning | ||||
| 03 | hadicová spona | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 04 | hadicová spona | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Hadice chod motoru vpřed-vodní ventil | 1 | 64211394293 | $19.95 | Shop at ECS Tuning | |||||
| 06 | Hadice topné těleso-zpětný chod motoru | 1 | 11531738053 | $73.42 | +core | Shop at ECS Tuning | ||||
| 07 | Vodní hadice | 1 | 11531730351 | $41.51 | +core | Shop at ECS Tuning | ||||
| 08 | hadicová spona | L28-33 | 5 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 09 | hadicová spona | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 10 | hadicová spona | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 11 | Termostat | 1 | 13541730682 | $62.63 | Shop at ECS Tuning | |||||
| 12 | O-kroužek | 1 | 13541735380 | $2.48 | Shop at ECS Tuning | |||||
| 13 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Vodní hadice | 1 | 13541735173 | $25.37 | Shop at ECS Tuning | |||||
| 15 | Vodní hadice | 1 | 13541735174 | $22.55 | Shop at ECS Tuning | |||||
| 16 | hadicová spona | L15-18 | 4 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 17 | Držák hadice | 1 | 11151730342 | $0.19 | Shop at ECS Tuning | |||||
| 17 | Držák diagnostická zástrčka | 2 | 11531726298 | $1.19 | Shop at ECS Tuning | |||||
| 18 | Kabelová spojka | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
