Rozvody-rozvodový řetěz for BMW 3 Series E30 318i (1987)

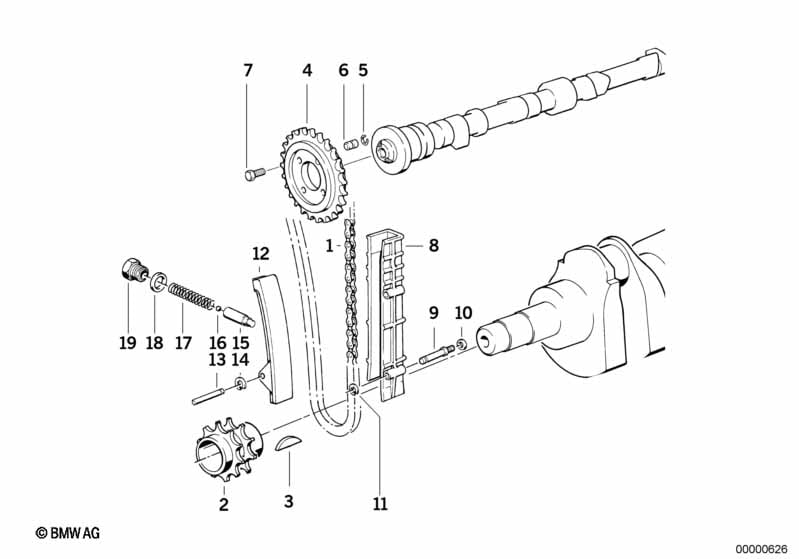

This Rozvody-rozvodový řetěz technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozvodový řetěz | EINFACHKETTE | 1 | 11311716987 | Shop at ECS Tuning | |||||
| 02 | Řetězové kolo | 1 | 11211265010 | $87.34 | Shop at ECS Tuning | |||||
| 03 | Kotoučová pružina | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Řetězové kolo | 1 | 11311265006 | $38.75 | Shop at ECS Tuning | |||||
| 05 | Rozpěrný kroužek | 4,8 | 1 | 11311744357 | $0.13 | Shop at ECS Tuning | ||||
| 06 | Válcový kolík | M6X8,2 | 1 | 11311744356 | $2.23 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Kluzná lišta | 1 | 11311253236 | $9.39 | Shop at ECS Tuning | |||||
| 09 | Ložiskový čep | 2 | 11311744351 | $4.20 | Shop at ECS Tuning | |||||
| 10 | Podložka | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Pojistná podložka | 5-ZNS3 | 2 | 07119904660 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Napínací vedení | 1 | 11311262273 | $53.05 | Shop at ECS Tuning | |||||
| 13 | Ložiskový čep | 1 | 11111744363 | $3.25 | Shop at ECS Tuning | |||||
| 14 | Pojistná podložka | 6,0-ZNS3 | 1 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Pojistná podložka | 6,0-ZNS3 | 1 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Píst | 1 | 11311744347 | $33.04 | Shop at ECS Tuning | |||||
| 16 | Kulička | 5MM III | 1 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 17 | Tlačná pružina | 1 | 11310731115 | $1.51 | Shop at ECS Tuning | |||||
| 18 | Těsnicí kroužek | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Šroubový uzávěr | 1 | 11310631139 | $3.05 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
