Uložení motoru/tlumič motoru for BMW 5 Series E34 525ix

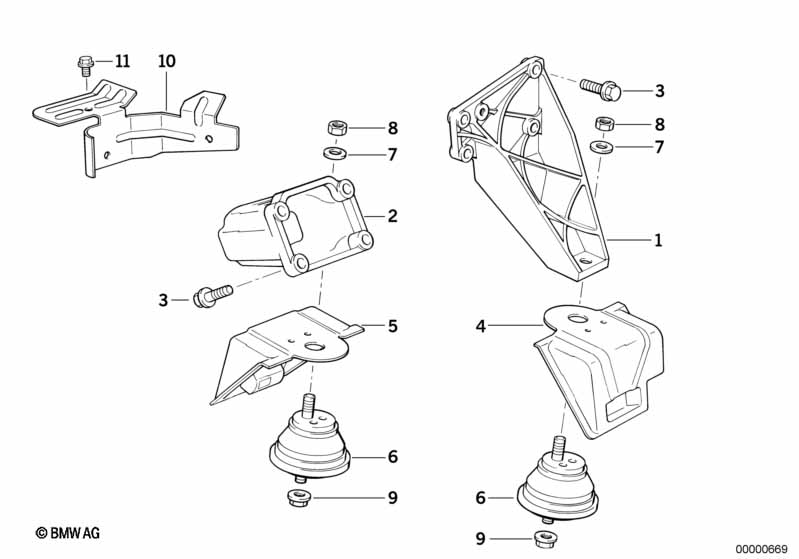

This Uložení motoru/tlumič motoru technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosný třmen levý | 1 | 11811140043 | $37.39 | Shop at ECS Tuning | |||||
| 02 | Nosný třmen pravý | 1 | 11811140042 | $41.20 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub s podložkou | M8X26-Z1-ZNS3 | 8 | 07119902919 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Doraz horní | 1 | 11811141429 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Doraz dolní | 1 | 11811141634 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Doraz pravý | 1 | 11811140896 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Pryžové ložisko | 2 | 11811141241 | $76.68 | Shop at ECS Tuning | |||||
| 07 | Podložka | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Šestihranná matice | M10 | 2 | 07119907088 | Shop at ECS Tuning | |||||
| 09 | Šestihranná matice | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Tepelný ochranný kryt | 1 | 11811140044 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
