Olejová vana/měrka oleje for BMW 7 Series E38 750iLS (2001)

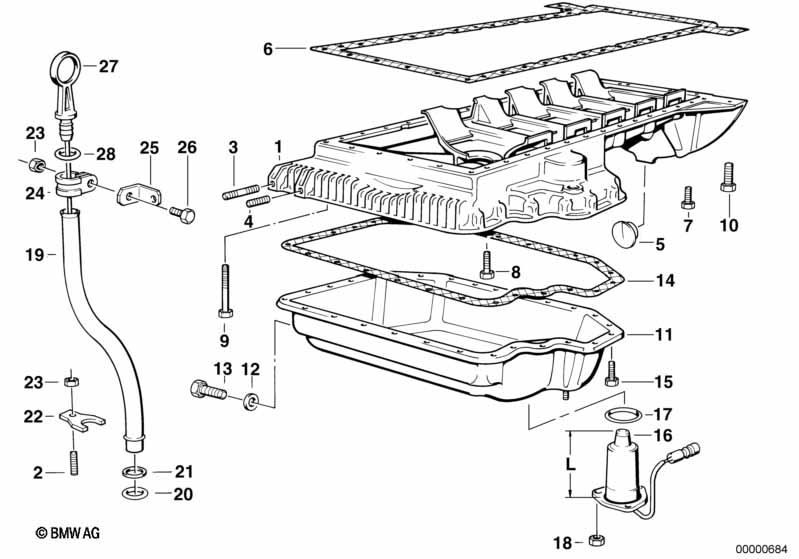

This Olejová vana/měrka oleje technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana horní díl | 1 | 10/1994 | 11131742897 | $882.95 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Závrtný šroub | M6X25-ZN | 1 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Závrtný šroub | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 04 | Závrtný šroub | M8X28 | 1 | 07129908147 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Víko | 1 | 11131731178 | $2.03 | Shop at ECS Tuning | |||||
| 06 | Těsnění bez azbestu | 1 | 11131702047 | $29.38 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Šestihranný šroub | M6X60 | 7 | 07119902994 | Shop at ECS Tuning | |||||
| -- | Šestihranný šroub s podložkou | M6X20-Z1 | 28 | 07119903850 | $0.62 | Shop at ECS Tuning | ||||
| -- | Šestihranný šroub s podložkou | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X20-Z1 | 28 | 07119903850 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Podložka | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Šestihranný šroub s podložkou | M6X60-Z3 | 7 | 07119913001 | $0.63 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Šestihranný šroub | M6X60 | 7 | 07119902994 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Pružná podložka | B6 | 7 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Šestihranný šroub s podložkou | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Olejová vana | 1 | 11131704393 | $341.33 | Shop at ECS Tuning | |||||
| 12 | Těsnicí kroužek | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Šroubový uzávěr | M12X1,5 | 1 | 11137568309 | Shop at ECS Tuning | |||||
| 14 | Těsnění bez azbestu | 1 | 11131741117 | $48.50 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Šestihranný šroub s podložkou | M6X20 | 30 | 11131439736 | $0.58 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub s podložkou | M6X20 | 30 | 11131439736 | $0.58 | Shop at ECS Tuning | ||||
| 16 | Snímač hladiny oleje | 1 | 12611406609 | $199.15 | Shop at ECS Tuning | |||||
| 17 | Těsnicí kroužek | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 18 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 19 | Vodicí trubka | 1 | 11431742901 | $40.73 | Shop at ECS Tuning | |||||
| 20 | O-kroužek | 15,0X5,0 | 1 | 11431707164 | $4.06 | Shop at ECS Tuning | ||||
| 21 | Podložka | 1 | 11437838127 | $3.19 | Shop at ECS Tuning | |||||
| 22 | Uchycení | 1 | 11437840407 | $1.98 | Shop at ECS Tuning | |||||
| 23 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 24 | Spona | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 25 | Příložka | 1 | 11431715631 | $0.79 | Shop at ECS Tuning | |||||
| 26 | Šestihranný šroub | M6X14-ZNNIV SI | 1 | 07119905964 | Shop at ECS Tuning | |||||
| 27 | Olejová měrka | 1 | 11431741615 | $15.30 | Shop at ECS Tuning | |||||
| 28 | O-kroužek | 9X2,2 | 1 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
