Hnací ústrojí for BMW 3 Series E36 318tds (1999)

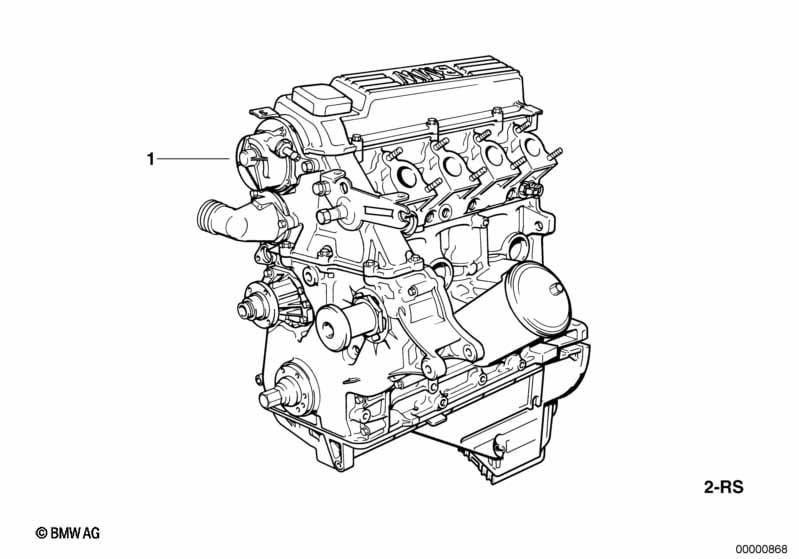

This Hnací ústrojí technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výměna hnací ústrojí | 174T1 | 1 | 11009069817 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | Sada montážní díly hnací ústrojí | 1 | 11009067821 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Hnací ústrojí?
- This technical diagram illustrates the Hnací ústrojí within the Motor group for the 3 Series E36 318tds produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Výměna hnací ústrojí (Part #11009069817).
- Which models use the hardware listed in this Hnací ústrojí?
- The hardware and components featured in the Hnací ústrojí are specific to the 3 Series E36 318tds produced during 1999. These technical specifications ensure that parts like the Výměna hnací ústrojí (11009069817) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hnací ústrojí assembly?
- Each item in the Hnací ústrojí corresponds to the numbered list below the illustration. For the 3 Series E36 318tds, you can identify the Výměna hnací ústrojí by locating its position on the schematic, which then links to the official BMW part number 11009069817 for the Motor section.
