Blok motoru for BMW 3 Series E36 318tds (1999)

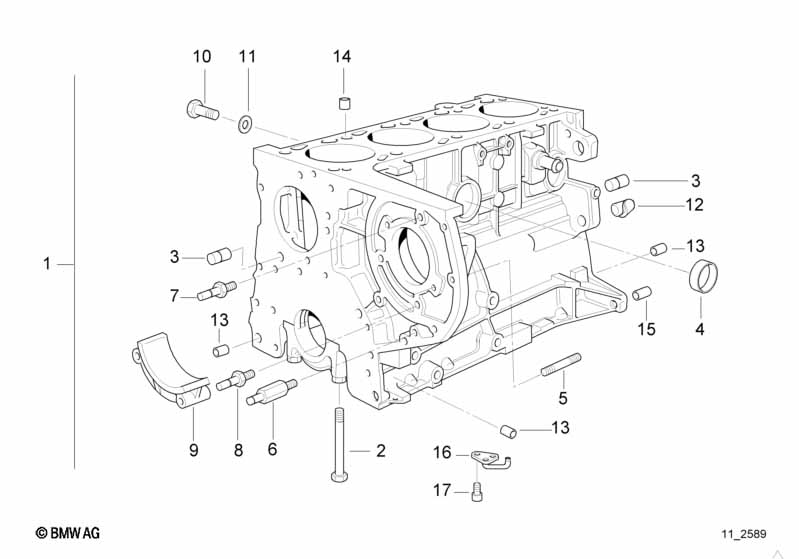

This Blok motoru technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok motoru s pístem | 1 | 11112246702 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M10X80 | 10 | 11112244286 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Zátka | D=12,0MM | 2 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Uzavírací víko | D=45MM | 4 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 05 | Závrtný šroub | M8X37-ZN | 2 | 07129900480 | Shop at ECS Tuning | |||||
| 06 | Ložiskový čep | 1 | 13512245370 | Shop at ECS Tuning | ||||||
| 07 | Ložiskový čep | 1 | 13512245368 | Shop at ECS Tuning | ||||||
| 08 | Ložiskový čep | 2 | 11112245726 | Shop at ECS Tuning | ||||||
| 10 | Šroubový uzávěr | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 11 | Těsnicí kroužek | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Zátka | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 13 | Lícovaná objímka | D=10,5MM | 5 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Lícovaná objímka | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 15 | Lícovaná objímka | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 16 | Vstřikovací tryska oleje | 4 | 11422243332 | $14.97 | Shop at ECS Tuning | |||||
| 17 | Isa-šroub | M6X10-8.8-ZNS3 | 8 | 07129903804 | $1.93 | Shop at ECS Tuning |
