Hlava válců for BMW 3 Series E36 318tds (1998)

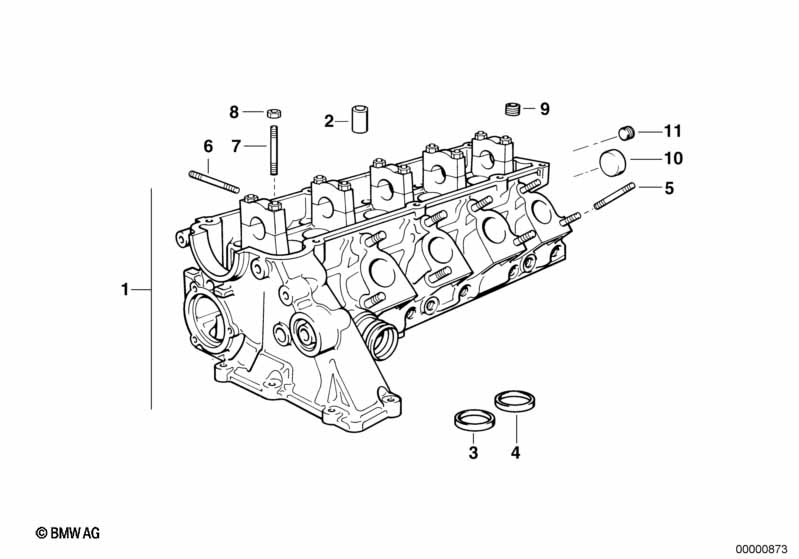

This Hlava válců technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlava válců | 1 | 11122247069 | Shop at ECS Tuning | ||||||
| Viz Servisní informace SIT 843 11 02 88 (Přesah ventil. dříku) |
||||||||||
| 02 | Vedení ventilu | 12,7MM(+0,2) | 1 | 11122245119 | UKONČENO, SI 110288843 | Shop at ECS Tuning | ||||
| 03 | Kroužek ventilového sedla sání | 38,55MM(+0,4) | 4 | 11122244272 | Shop at ECS Tuning | |||||
| 04 | Kroužek ventilového sedla výfuk | 32,55MM(+0,4) | 4 | 11122244278 | Shop at ECS Tuning | |||||
| 05 | Závrtný šroub | M8X60 | 8 | 11122245891 | Shop at ECS Tuning | |||||
| 06 | Závrtný šroub | M8X55 | 8 | 11122245890 | Shop at ECS Tuning | |||||
| 07 | Závrtný šroub | M7X45 | 10 | 07129908199 | $0.89 | Shop at ECS Tuning | ||||
| 08 | Přírubová matice | M7 | 10 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Šroubový uzávěr | M16X1,5 | 4 | 11117545230 | $3.78 | Shop at ECS Tuning | ||||
| 10 | Uzavírací víko | D=24MM | 1 | 07119906056 | $0.61 | Shop at ECS Tuning | ||||
| 11 | Šroubový uzávěr | M10X1 | 1 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- SI = Service-Information (Servisní informace)
