Víko hlavy válců for BMW 3 Series E36 318tds (1998)

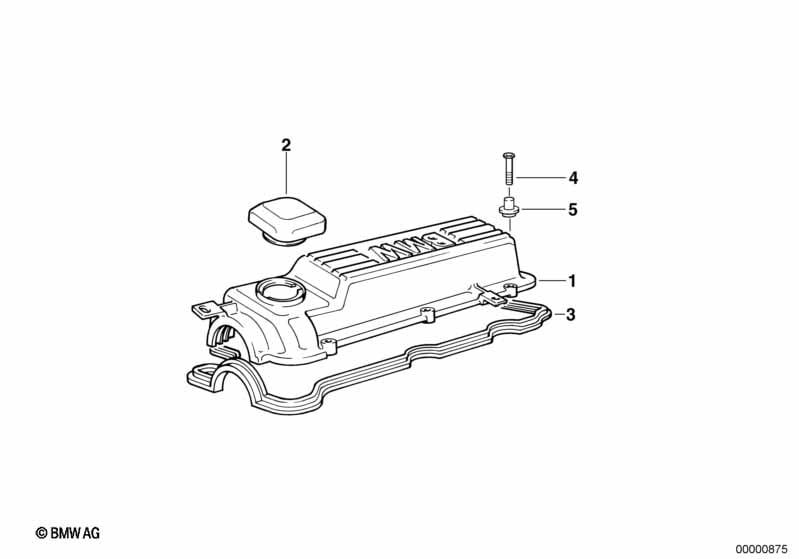

This Víko hlavy válců technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Víko hlavy válců | 1 | 11129069260 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 02 | Uzavírací víko olejové plnicí hrdlo | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 03 | Tvarové těsnění | 1 | 11122245599 | Shop at ECS Tuning | ||||||
| 04 | Šroub Torx | M7X34 | 6 | 11122245843 | Shop at ECS Tuning | |||||
| 05 | Pryžové těsnění | 6 | 11122245844 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
