Řem.pohon tlumič kmitů for BMW 3 Series E36 318tds (1999)

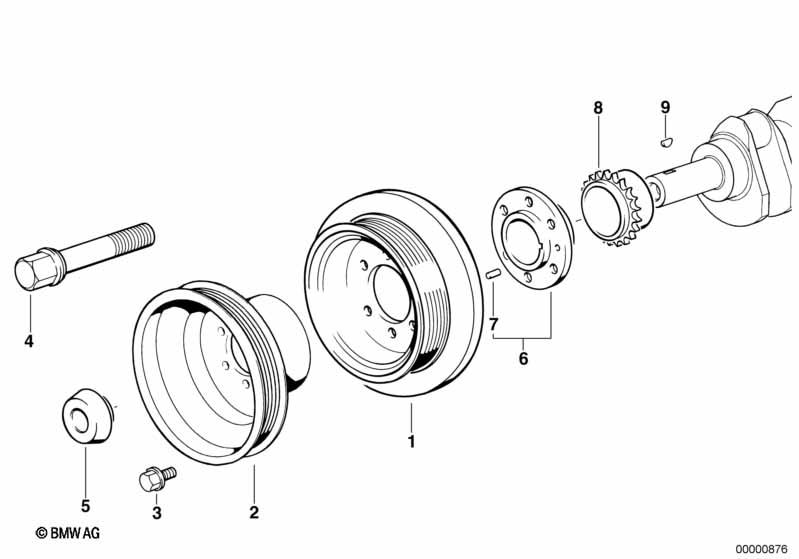

This Řem.pohon tlumič kmitů technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tlumič kmitů | 1 | 11232245345 | +core | Shop at ECS Tuning | |||||
| Pro vozidla s Klimatizace |
=Ano |
|||||||||
| 02 | Řemenice | 1 | 64552245668 | Shop at ECS Tuning | ||||||
| 03 | Šestihranný šroub s podložkou | M8X12-Z3-1 | 6 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| Pro vozidla s Klimatizace |
=Ano |
|||||||||
| 03 | Šestihranný šroub s podložkou | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M18X1,5X102 | 1 | 11232248268 | $8.10 | Shop at ECS Tuning | ||||
| 05 | Podložka | 1 | 11231288660 | $8.10 | Shop at ECS Tuning | |||||
| 06 | Náboj | 1 | 11211726449 | $61.18 | Shop at ECS Tuning | |||||
| 07 | Lícovaný kolík | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 08 | Řetězové kolo | 1 | 11232245550 | Shop at ECS Tuning | ||||||
| 09 | Kotoučová pružina | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
