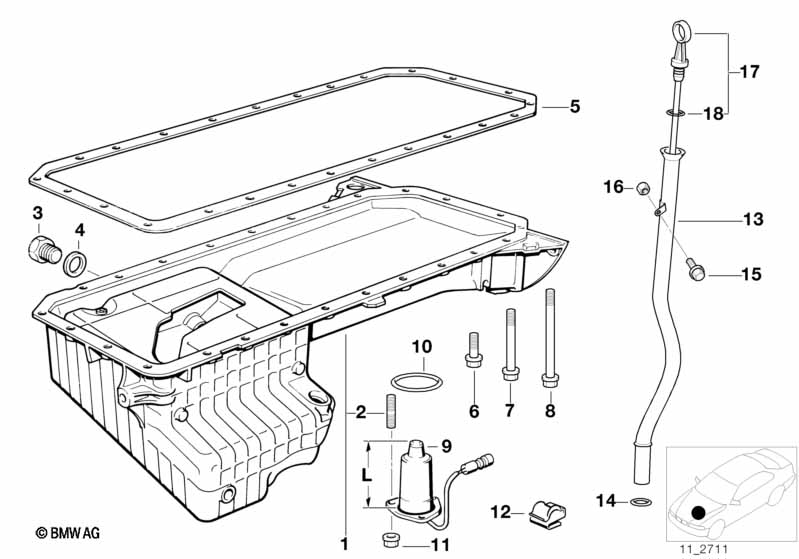

Olejová vana/měrka oleje for BMW 5 Series E39 525tds (1998)
This Olejová vana/měrka oleje technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana | 1 | 11132245975 | $424.08 | Shop at ECS Tuning | |||||
| 02 | Závrtný šroub | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Šroubový uzávěr | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Těsnění bez azbestu | 1 | 11139066503 | $45.62 | Shop at ECS Tuning | |||||
| 06 | Šroub Torx | M6X22 | 21 | 09/1997 | 11137800619 | $0.67 | Shop at ECS Tuning | |||
| 07 | Šroub Torx | M6X60-ZNNIV SI | 2 | 09/1997 | 11137800622 | $1.08 | Shop at ECS Tuning | |||
| 08 | Šroub Torx | M6X100 | 2 | 09/1997 | 11137800623 | $1.65 | Shop at ECS Tuning | |||
| 09 | Snímač hladiny oleje | 1 | 02/1996 | 12617508001 | $230.85 | Shop at ECS Tuning | ||||
| 10 | Těsnicí kroužek | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 11 | Šestihranná matice | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Kabelová svorka | D=19-24/B=5 | 1 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 13 | Vodicí trubka | 1 | 11432246314 | Shop at ECS Tuning | ||||||
| 14 | O-kroužek | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Šroub s plochou kulovou hlavou | M8X25 | 1 | 07119910446 | $1.73 | Shop at ECS Tuning | ||||
| 16 | Šestihranná matice s přírubou | M8 | 1 | 06/2011 | 11611713432 | $0.43 | UKONČENO | Shop at ECS Tuning | ||
| 16 | Šestihranná matice s přírubou | M8 | 1 | 18307620549 | Shop at ECS Tuning | |||||
| 17 | Olejová měrka | 1 | 11432243911 | Shop at ECS Tuning | ||||||
| 18 | O-kroužek | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
