Hnací ústrojí for BMW 3 Series E91 320d (2006)

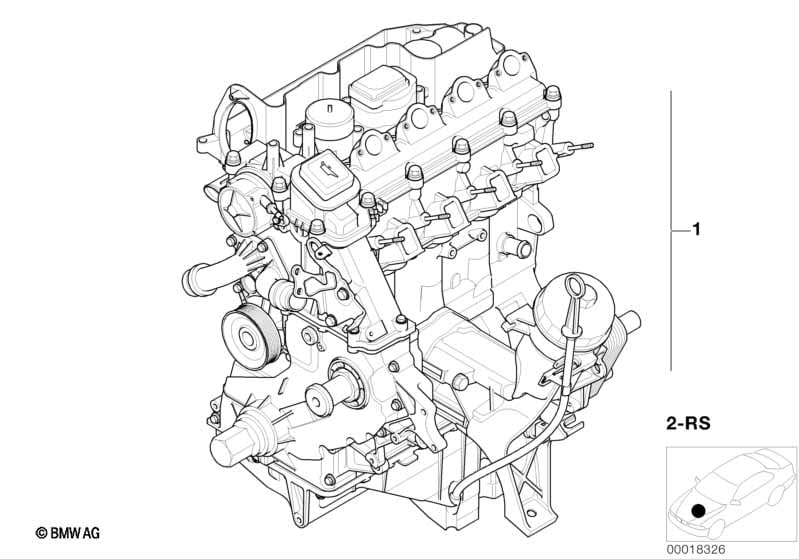

This Hnací ústrojí technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Automatická převodovka |
S205A=Ne |
|||||||||
| 01 | Hnací ústrojí | 204D4 | 1 | 11000441268 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | RP REMAN hnací jednotka | 204D4 | 1 | 11000441269 | +core | Shop at ECS Tuning | ||||
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 01 | Hnací ústrojí | 204D4 | 1 | 11000441270 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | RP REMAN hnací jednotka | 204D4 | 1 | 11000441271 | +core | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 320d Hnací ústrojí?
- This technical diagram illustrates the Hnací ústrojí within the Motor group for the 3 Series E91 320d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Hnací ústrojí (Part #11000441268).
- Which models use the hardware listed in this Hnací ústrojí?
- The hardware and components featured in the Hnací ústrojí are specific to the 3 Series E91 320d produced during 2006. These technical specifications ensure that parts like the Hnací ústrojí (11000441268) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hnací ústrojí assembly?
- Each item in the Hnací ústrojí corresponds to the numbered list below the illustration. For the 3 Series E91 320d, you can identify the Hnací ústrojí by locating its position on the schematic, which then links to the official BMW part number 11000441268 for the Motor section.
