Píst for BMW 1502-2002tii 1602 (1975)

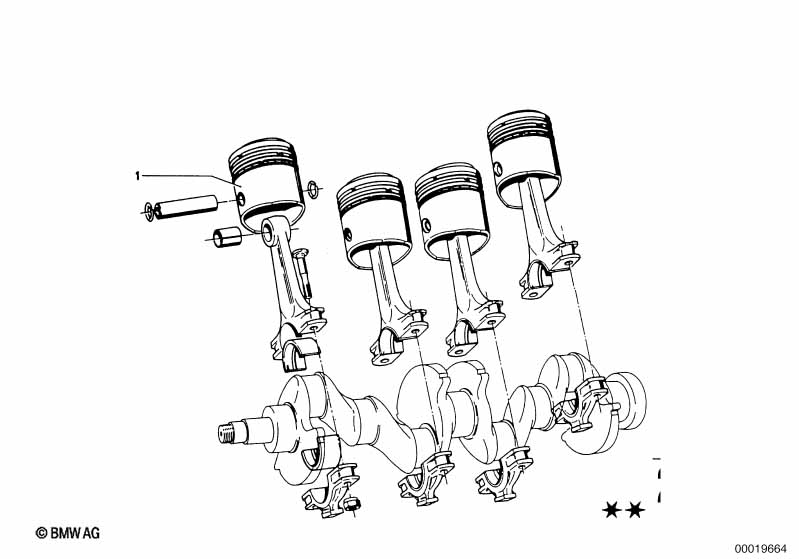

This Píst technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Píst Mahle | 83,97MM("0") | 4 | 04/1964 | 10/1975 | 11251261905 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Píst Mahle | 84,05MM("00") | 4 | 04/1964 | 10/1975 | 11251261906 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Píst Mahle | 84,22MM(+0,25) | 4 | 04/1964 | 10/1975 | 11251261907 | $155.12 | UKONČENO | Shop at ECS Tuning | |
| 01 | Píst Mahle | 84,47MM(+0,50) | 4 | 04/1964 | 10/1975 | 11251261908 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Píst | 83,97MM("0") | 4 | 04/1964 | 10/1975 | 11251261910 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Píst | 84,22MM(+0,25) | 4 | 04/1964 | 10/1975 | 11251261912 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Píst | 84,47MM(+0,50) | 4 | 04/1964 | 10/1975 | 11251261913 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Nueral/Alcan píst | 83,97MM("0") | 4 | 04/1964 | 10/1975 | 11251261915 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Nueral/Alcan píst | 84,05MM("00") | 4 | 04/1964 | 10/1975 | 11251261916 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Nueral/Alcan píst | 84,22MM(+0,25) | 4 | 04/1964 | 10/1975 | 11251261917 | $224.79 | UKONČENO | Shop at ECS Tuning | |
| 01 | Nueral/Alcan píst | 84,47MM(+0,50) | 4 | 04/1964 | 10/1975 | 11251261918 | $155.12 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Píst?
- This technical diagram illustrates the Píst within the Motor group for the 1502-2002tii 1602 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Píst Mahle (Part #11251261905).
- Which models use the hardware listed in this Píst?
- The hardware and components featured in the Píst are specific to the 1502-2002tii 1602 produced during 1975. These technical specifications ensure that parts like the Píst Mahle (11251261905) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Píst assembly?
- Each item in the Píst corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Píst Mahle by locating its position on the schematic, which then links to the official BMW part number 11251261905 for the Motor section.
