Píst for BMW 1502-2002tii 2002 (1971)

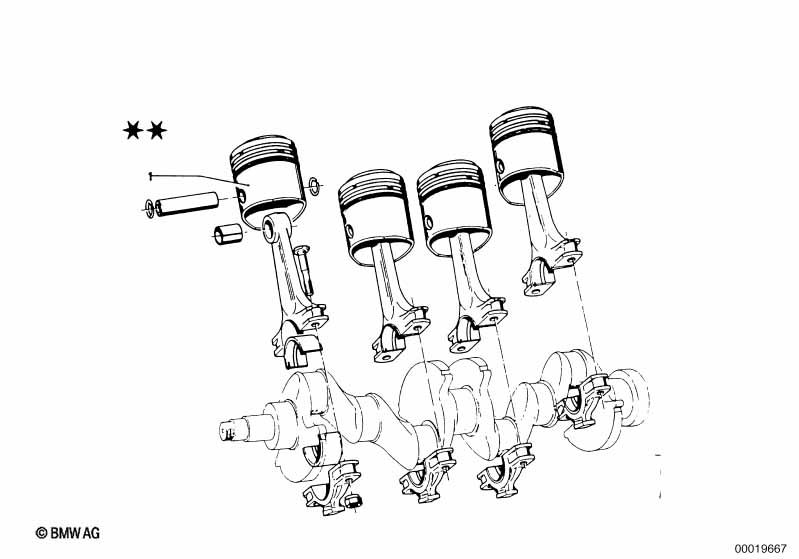

This Píst technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Píst | 88,97MM("0") | 4 | 11251261921 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Píst | 89,22MM(+0,25) | 4 | 11251261923 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Píst | 89,47MM(+0,50) | 4 | 11251261924 | $317.80 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Píst Mahle | 88.97MM("0") | 4 | 11251261926 | Shop at ECS Tuning | |||||
| 01 | Píst Mahle | 88.05MM(REP) | 4 | 11251261927 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Píst Mahle | 89,22MM(+0,25) | 4 | 11251261928 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Píst Mahle | 89,47MM(+0,50) | 4 | 11251261929 | $253.33 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Píst?
- This technical diagram illustrates the Píst within the Motor group for the 1502-2002tii 2002 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Píst (Part #11251261921).
- Which models use the hardware listed in this Píst?
- The hardware and components featured in the Píst are specific to the 1502-2002tii 2002 produced during 1971. These technical specifications ensure that parts like the Píst (11251261921) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Píst assembly?
- Each item in the Píst corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Píst by locating its position on the schematic, which then links to the official BMW part number 11251261921 for the Motor section.
