Píst for BMW 1502-2002tii 2002 (1970)

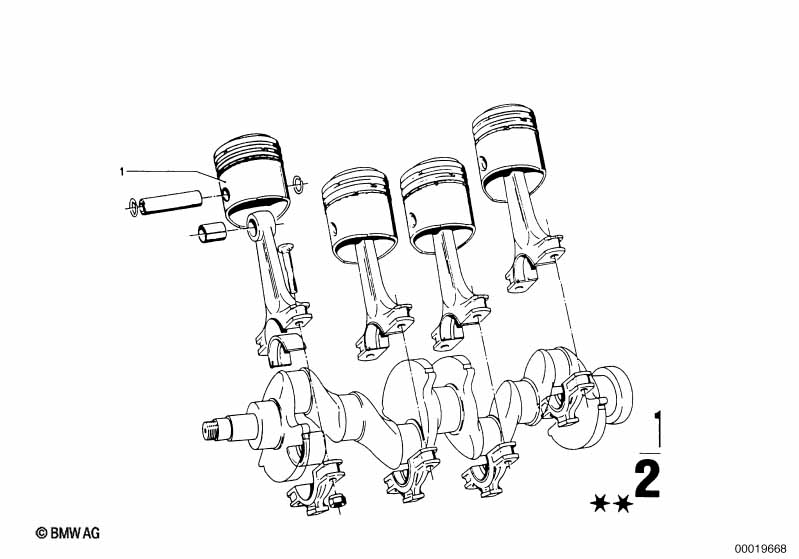

This Píst technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Píst Mahle | 88,97 | 4 | 11251261867 | UKONČENO | Shop at ECS Tuning | ||||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst Mahle | 89,05MM("00") | 4 | 11251261868 | UKONČENO | Shop at ECS Tuning | ||||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst Mahle | 89,22MM(+0,25) | 4 | 11251261869 | $155.12 | UKONČENO | Shop at ECS Tuning | |||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst Mahle | 89,47MM(+0,50) | 4 | 11251261870 | UKONČENO | Shop at ECS Tuning | ||||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst | 88,97MM("0") | 4 | 11251261872 | UKONČENO | Shop at ECS Tuning | ||||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst | 89,22MM(+0,25) | 4 | 11251261874 | $224.79 | UKONČENO | Shop at ECS Tuning | |||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
| 01 | Píst | 89,47MM(+0,50) | 4 | 11251261875 | UKONČENO | Shop at ECS Tuning | ||||
| FG -> 2583406 / 2002 USA FG -> 2532753 / 2002 Automatic USA California |
||||||||||
Notes
- Ukončeno = Díl se již nevyrábí.
