Rozvod ventilů-vstupní/výstupní ventil for BMW 1502-2002tii 2002 (1975)

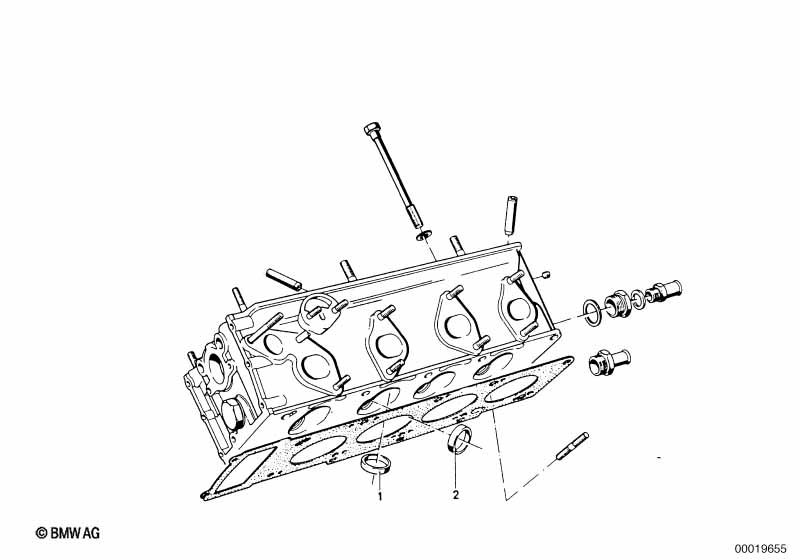

This Rozvod ventilů-vstupní/výstupní ventil technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kroužek ventilového sedla sání | +0,20MM | 4 | 01/1970 | 07/1976 | 11121254253 | $7.33 | Shop at ECS Tuning | ||
| 01 | Kroužek ventilového sedla sání | +0,40MM | 4 | 01/1970 | 07/1976 | 11121254254 | $7.33 | UKONČENO | Shop at ECS Tuning | |
| 02 | Kroužek ventilového sedla výfuk | +0,40MM | 4 | 02/1965 | 07/1976 | 11121264035 | $7.48 | UKONČENO | Shop at ECS Tuning | |
| 02 | Kroužek ventilového sedla výfuk | 4 | 02/1965 | 07/1976 | 11121271561 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
