Olejový filtr for BMW 1502-2002tii 1602 (1971)

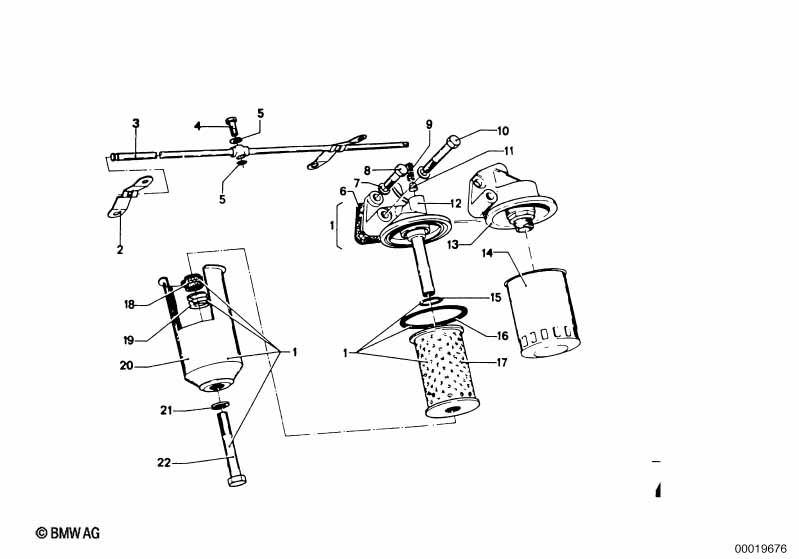

This Olejový filtr technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová filtrační jednotka | 1 | 02/1962 | 08/1973 | 11421255803 | $36.83 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Spona | 2 | 11421250567 | $1.05 | Shop at ECS Tuning | |||||
| 03 | Olejové vedení | 1 | 11421256682 | $15.37 | Shop at ECS Tuning | |||||
| 04 | Dutý šroub | 1 | 11421738621 | $6.01 | Shop at ECS Tuning | |||||
| 05 | Těsnicí kroužek | A8X11,5 | 2 | 11421252343 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Těsnění bez azbestu | 1 | 11421312607 | $3.13 | Shop at ECS Tuning | |||||
| 07 | Pružná podložka | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 09 | Tlačná pružina | 1 | 02/1962 | 07/1977 | 11420661110 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Šestihranný šroub | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 11 | Ventilový klínek | 1 | 02/1962 | 07/1977 | 11420661105 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Těleso olejového filtru | 1 | 02/1962 | 07/1977 | 11421250840 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Hlava olejového filtru | 1 | 01/1970 | 07/1977 | 11421289128 | $55.47 | UKONČENO | Shop at ECS Tuning | ||
| 14 | Olejový filtr | 1 | 03/1971 | 07/1977 | 11421258038 | Shop at ECS Tuning | ||||
| 15 | O-kroužek | 18X5 | 1 | 02/1962 | 07/1977 | 11420661120 | $2.87 | UKONČENO | Shop at ECS Tuning | |
| 16 | Těsnění bez azbestu | 1 | 02/1962 | 07/1977 | 11429065679 | $6.03 | Shop at ECS Tuning | |||
| 17 | Vložka olejového filtru | 1 | 02/1962 | 07/1977 | 11429061088 | Shop at ECS Tuning | ||||
| 18 | Tvarové těsnění | 1 | 02/1962 | 07/1977 | 11420661165 | $4.30 | Shop at ECS Tuning | |||
| 19 | Pružina | 1 | 02/1962 | 07/1977 | 11420661174 | UKONČENO | Shop at ECS Tuning | |||
| 20 | Těleso olejového filtru | 1 | 02/1962 | 07/1977 | 11421251379 | $185.26 | UKONČENO | Shop at ECS Tuning | ||
| 21 | Těsnicí kroužek | A10X16-CU | 1 | 02/1962 | 07/1977 | 07119963106 | $0.10 | Shop at ECS Tuning | ||
| 22 | Šestihranný šroub | M10X1X75 | 1 | 02/1962 | 07/1977 | 07119914372 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
