Hadice chlazení for BMW 1502-2002tii 2002 (1972)

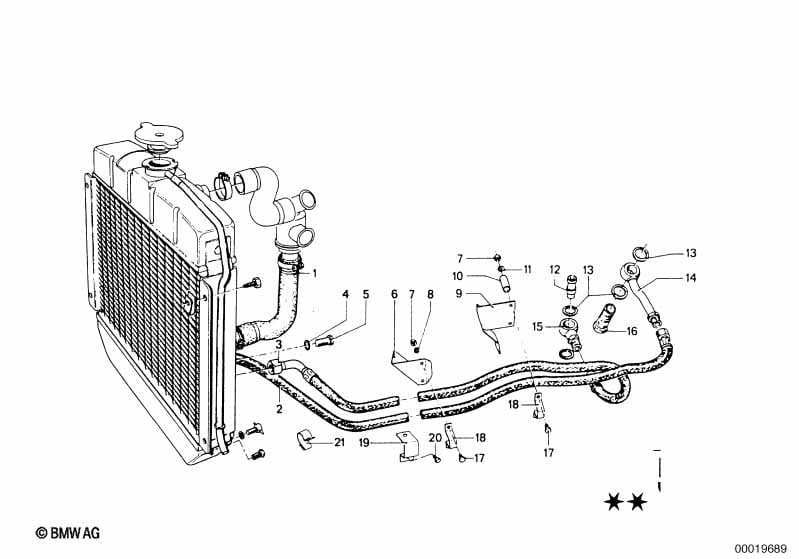

This Hadice chlazení technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadice | 1 | 11531250702 | $19.61 | Shop at ECS Tuning | |||||
| 02 | Hadice | 1 | 05/1969 | 10/1975 | 17221114388 | $53.48 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Hadice | 1 | 05/1969 | 10/1975 | 17221114389 | $32.14 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Těsnicí kroužek | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Šroubový uzávěr | 1 | 17111101872 | $2.53 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Držák olejové vedení | 1 | 05/1969 | 07/1976 | 17221105860 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Šestihranná matice | M5-8-ZNNIV SI | 4 | 05/1969 | 07/1976 | 07119905729 | Shop at ECS Tuning | |||
| 08 | Pružná podložka | B5 | 4 | 05/1969 | 07/1976 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 09 | Držák olejové vedení | 1 | 05/1969 | 07/1976 | 17221105861 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Trubka | 1 | 05/1969 | 07/1976 | 17221113704 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Podložka | 1 | 05/1969 | 07/1976 | 11410752144 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Pouzdro | 1 | 05/1969 | 07/1976 | 17221104286 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Těsnicí kroužek | A18X22-CU | 4 | 05/1969 | 07/1976 | 07119963308 | $0.25 | Shop at ECS Tuning | ||
| 14 | Připojovací kus | 1 | 05/1969 | 07/1976 | 17221104053 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Připojovací kus | 1 | 05/1969 | 07/1976 | 17221101244 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Dutý šroub | M18X32 | 2 | 05/1969 | 07/1976 | 32411117183 | $7.53 | UKONČENO | Shop at ECS Tuning | |
| 17 | Šestihranný šroub | M5X10 | 4 | 05/1969 | 07/1976 | 07119913218 | $0.12 | Shop at ECS Tuning | ||
| 18 | Spona | 2X18 | 1 | 05/1969 | 07/1976 | 07119977517 | UKONČENO | Shop at ECS Tuning | ||
| 19 | Spona | 1 | 05/1969 | 07/1976 | 17221105859 | UKONČENO | Shop at ECS Tuning | |||
| 21 | Spona | 1 | 05/1969 | 07/1976 | 17221115867 | $0.96 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
