Hlava válců,víko,těsnění for BMW 1500-2000CS 1800 (1971)

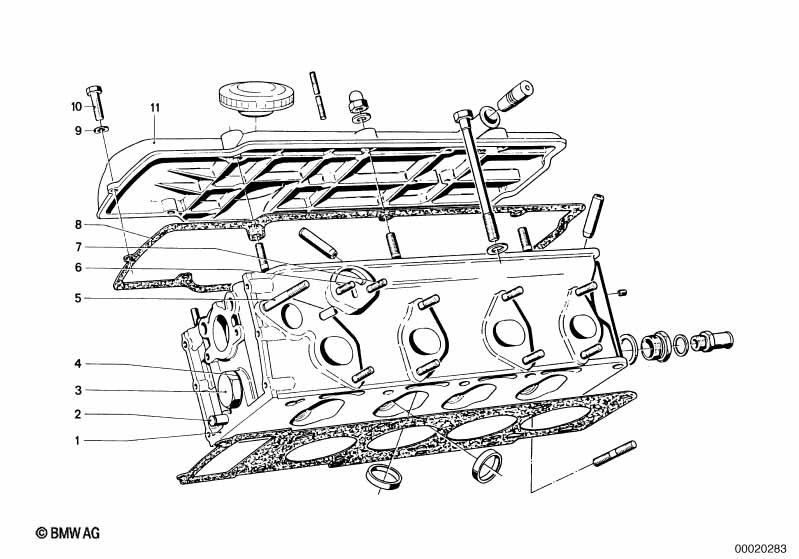

This Hlava válců,víko,těsnění technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlava válců | 1 | 09/1963 | 12/1971 | 11120621013 | $559.71 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Šroubový uzávěr | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Závrtný šroub | M8X90 | 1 | 07129908160 | $0.76 | Shop at ECS Tuning | ||||
| 06 | Závrtný šroub | M8X50-ZNS | 1 | 07129901917 | $0.61 | Shop at ECS Tuning | ||||
| 07 | Závrtný šroub | M8X55 | 1 | 07129908137 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Těsnění bez azbestu | 1 | 11121734215 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Pružná podložka | B6 | 7 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Šestihranný šroub | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Víko hlavy válců | 1 | 02/1962 | 01/1972 | 11121270360 | $100.14 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
