Klikový mechanismus-ojnice for BMW 2500-3.3Li 3.0S (1974)

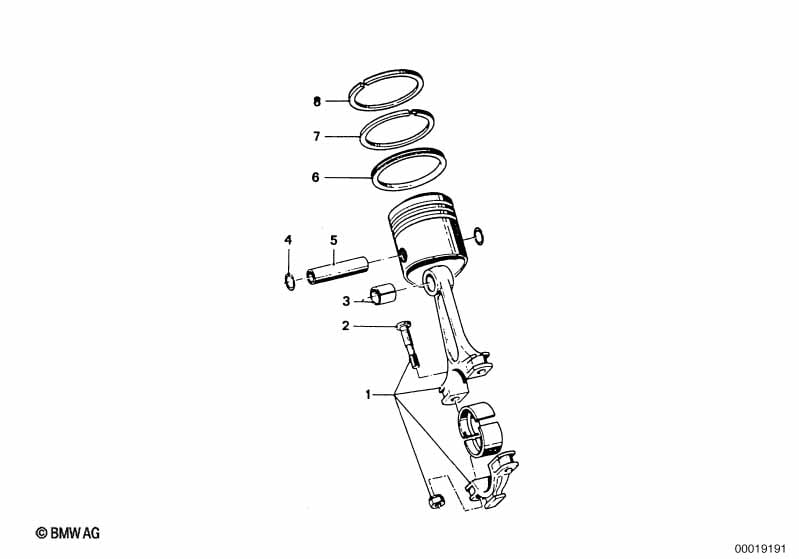

This Klikový mechanismus-ojnice technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ojnice | L=135MM | 6 | 08/1968 | 02/1977 | 11240618006 | $209.32 | Shop at ECS Tuning | ||
| 02 | Ojniční šroub | 12 | 11241719991 | $6.32 | Shop at ECS Tuning | |||||
| 03 | Zásuvka pro tyč | 6 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 04 | Rozpěrný kroužek | C22X1.5 | 12 | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 05 | pístní čep | 22X13X71 | 6 | 11250712199 | $29.28 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Olejový stírací kroužek | +0,25 | 6 | 12/1968 | 02/1977 | 11251274787 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Olejový stírací kroužek | 88,97MM("0") | 6 | 04/1971 | 02/1977 | 11251274784 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Olejový stírací kroužek | +0,50 | 6 | 04/1971 | 02/1977 | 11251274788 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Kroužek L | 88,97MM("0") | 6 | 04/1971 | 02/1977 | 11251259311 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Kroužek L | +0,25 | 66 | 04/1971 | 02/1977 | 11251259312 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Kroužek L | +0,50 | 6 | 04/1971 | 02/1977 | 11251259313 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Obdélníkový kroužek | 88,97MM("0") | 6 | 04/1971 | 02/1977 | 11251251766 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Obdélníkový kroužek | +0,25 | 6 | 04/1971 | 02/1977 | 11251251767 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Obdélníkový kroužek | +0,50 | 6 | 04/1971 | 02/1977 | 11251251768 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
