Rozvod ventilů-vačk. hřídel/řetěz. pohon for BMW 2500-3.3Li 3.0S (1974)

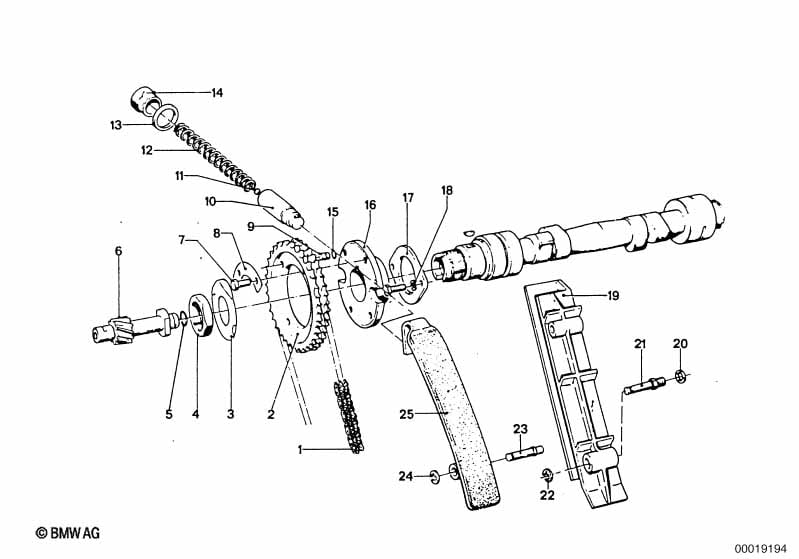

This Rozvod ventilů-vačk. hřídel/řetěz. pohon technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozvodový řetěz | DOPPELKETTE | 1 | 11310731105 | $84.91 | Shop at ECS Tuning | ||||
| 02 | Řetězové kolo | 1 | 11311253112 | $88.46 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Pojistná podložka | 1 | 11311250095 | UKONČENO, SI 110582004 | Shop at ECS Tuning | |||||
| 04 | Šestihranná matice | M30X1,5 | 1 | 11311250096 | $4.40 | Shop at ECS Tuning | ||||
| 05 | Těsnicí kroužek | 1 | 11311250092 | $1.73 | Shop at ECS Tuning | |||||
| 06 | Hnací hřídel rozdělovače | 1 | 11311250091 | $56.64 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Pojistná podložka | 2 | 11311250094 | UKONČENO, SI 110582004 | Shop at ECS Tuning | |||||
| 09 | Válcový kolík | M6X8,2 | 1 | 11311744356 | $2.23 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Píst | 1 | 11311744347 | $33.04 | Shop at ECS Tuning | |||||
| 11 | Kulička | 5MM III | 1 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 12 | Tlačná pružina | 1 | 11310731115 | $1.51 | Shop at ECS Tuning | |||||
| 13 | Těsnicí kroužek | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Šroubový uzávěr | 1 | 11310631139 | $3.05 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Rozpěrný kroužek | 4,8 | 1 | 11311744357 | $0.13 | Shop at ECS Tuning | ||||
| 16 | Příruba | 1 | 11311250058 | $44.75 | Shop at ECS Tuning | |||||
| 17 | Vodicí deska | 1 | 11311250093 | $15.98 | Shop at ECS Tuning | |||||
| 18 | Pružná podložka | B6 | 2 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Kluzná lišta | 1 | 11311253236 | $9.39 | Shop at ECS Tuning | |||||
| 20 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 21 | Ložiskový čep | 2 | 11311744351 | $4.20 | Shop at ECS Tuning | |||||
| 22 | Pojistná podložka | 5-ZNS3 | 2 | 07119904660 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Ložiskový čep | 1 | 11111744363 | $3.25 | Shop at ECS Tuning | |||||
| 24 | Pojistná podložka | 6,0-ZNS3 | 1 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 25 | Napínací vedení | 1 | 11311262273 | $53.05 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- SI = Service-Information (Servisní informace)
