Sdružený válec for BMW 700LS (1964)

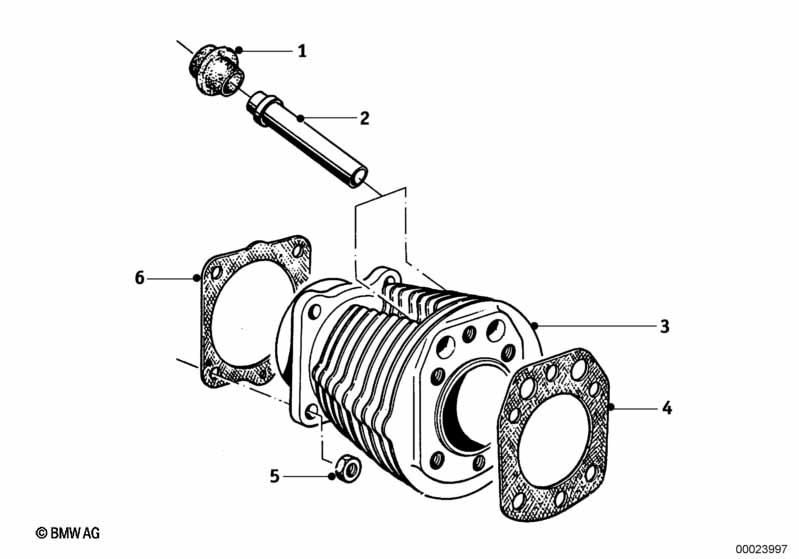

This Sdružený válec technical drawing provides a detailed breakdown of the assembly for the 700LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pryžové hrdlo | 4 | 11110033814 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Šestihranná matice | AM10-10-ZNS3 | 4 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Těsnění příruby válce | 700 | 2 | 11120016802 | $28.46 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 700LS Sdružený válec?
- This technical diagram illustrates the Sdružený válec within the Motor group for the 700LS produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Pryžové hrdlo (Part #11110033814).
- Which models use the hardware listed in this Sdružený válec?
- The hardware and components featured in the Sdružený válec are specific to the 700LS produced during 1964. These technical specifications ensure that parts like the Pryžové hrdlo (11110033814) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sdružený válec assembly?
- Each item in the Sdružený válec corresponds to the numbered list below the illustration. For the 700LS, you can identify the Pryžové hrdlo by locating its position on the schematic, which then links to the official BMW part number 11110033814 for the Motor section.
