Olejová vana/měrka oleje for BMW 6 Series E24 M6 (1988)

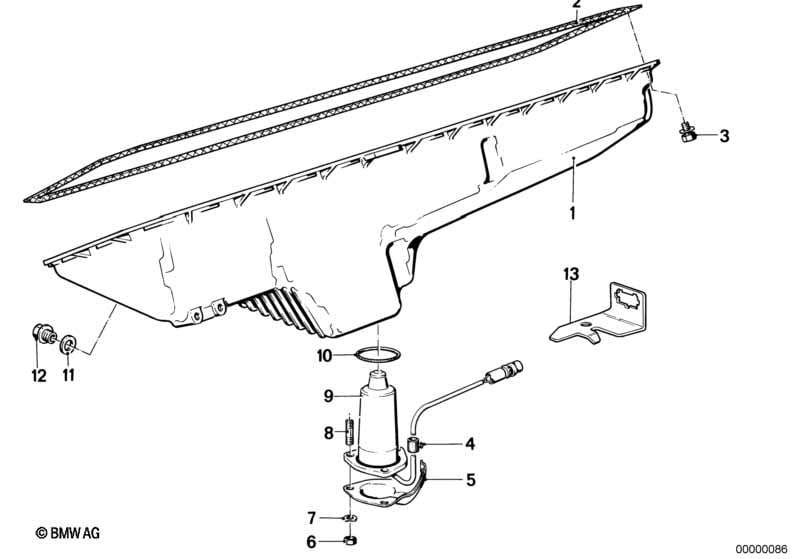

This Olejová vana/měrka oleje technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana | 1 | 09/1982 | 11131278878 | $556.97 | Shop at ECS Tuning | ||||
| 02 | Těsnění bez azbestu | 1 | 09/1982 | 11131315085 | $18.00 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M6X20-Z3 | X | 09/1982 | 07119915031 | $0.24 | Shop at ECS Tuning | |||
| 04 | Pryžová průchodka | 1 | 09/1982 | 12611276240 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Krycí plech | 1 | 09/1982 | 12521276200 | $6.53 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice | M6-8-ZNNIV SI | 3 | 09/1982 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 07 | Pružná podložka černá | B6-ZN | 3 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 08 | Závrtný šroub | M6X25-ZN | 3 | 09/1982 | 07129908100 | $0.20 | Shop at ECS Tuning | |||
| 09 | Hladinový spínač | 1 | 09/1982 | 12611276183 | $181.52 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Hladinový spínač | 1 | 09/1982 | 12611312111 | $186.36 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Těsnicí kroužek | 40X4 | 1 | 09/1982 | 12611277129 | $2.09 | Shop at ECS Tuning | |||
| 11 | Těsnicí kroužek | A12X17-CU | 1 | 09/1982 | 07119963151 | $0.57 | Shop at ECS Tuning | |||
| 12 | Šroubový uzávěr | M12X1,5 | 1 | 09/1982 | 04/1989 | 11131273093 | $3.68 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
