Olejová vana/měrka oleje for BMW MINI R50 Cooper (2000)

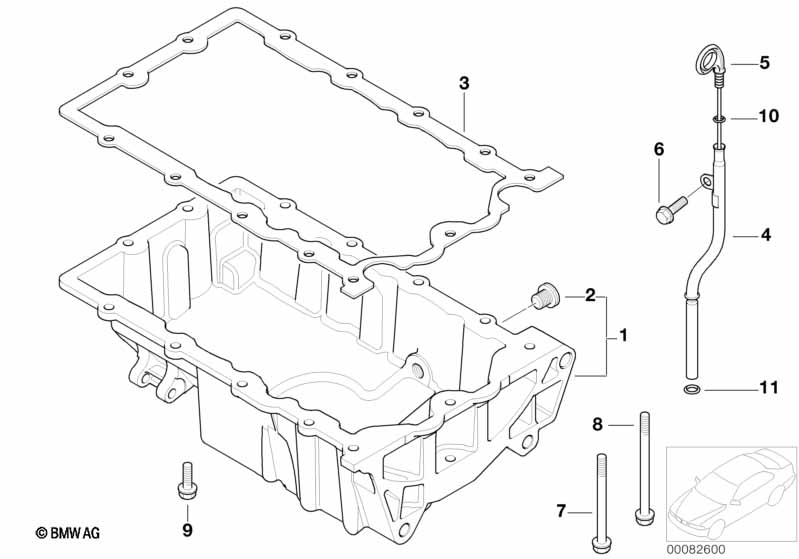

This Olejová vana/měrka oleje technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP Olejová vana | 1 | 07/2008 | 11137513061 | $277.96 | UKONČENO | Shop at ECS Tuning | |||
| 01 | RP REMAN olejová vana | 1 | 07/2008 | 11132463751 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Tekuté těsnění Loctite 5970 | 50ML | 1 | 07/2008 | 83190404517 | $23.40 | Shop at ECS Tuning | |||
| 02 | Šroubový uzávěr s těsnicím kroužkem | M14X1.5 | 1 | 11137513050 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Těsnění olejová vana | 1 | 11131487221 | $36.71 | Shop at ECS Tuning | |||||
| Oprava nutná | ||||||||||
| -- | Šroub s přírubou | M8X25MM | 11 | 07131500896 | $1.80 | Shop at ECS Tuning | ||||
| -- | Šestihranný šroub | M8X95-10.9-ZNS3 | 1 | 07119904996 | $1.53 | Shop at ECS Tuning | ||||
| 04 | Vodicí trubka | 1 | 11431485835 | $40.73 | Shop at ECS Tuning | |||||
| 05 | RP měrka oleje | 1 | 11437510798 | $15.30 | Shop at ECS Tuning | |||||
| 05 | RP REMAN měrka oleje | 1 | 11432465007 | Shop at ECS Tuning | ||||||
| 06 | Šestihranný šroub s podložkou | M10X20MM | 1 | 07131500902 | $0.89 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub | M8X95-10.9-ZNS3 | 1 | 07119904996 | $1.53 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub s podložkou | M8X110-Z1-ZNS3 | 1 | 07119903956 | Shop at ECS Tuning | |||||
| 09 | Šroub s přírubou | M8X25MM | 11 | 07131500896 | $1.80 | Shop at ECS Tuning | ||||
| 10 | O-kroužek | 1 | 11437514980 | $0.88 | Shop at ECS Tuning | |||||
| 11 | O-kroužek | 11,81X2.6 | 1 | 11437513891 | $1.27 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
