Klikový mechanismus-ojnice s pístem for BMW MINI R50 Cooper (2000)

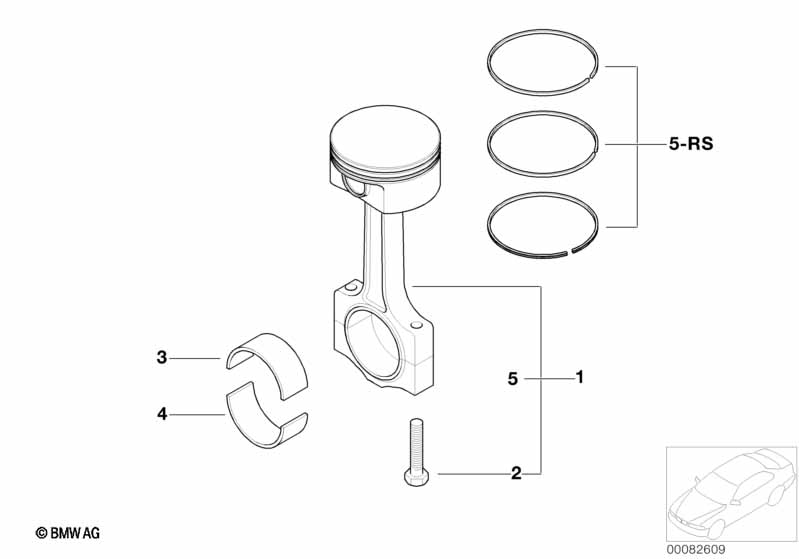

This Klikový mechanismus-ojnice s pístem technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada píst s ojnicí | (0) | 1 | 11257508551 | $1183.09 | +core | Shop at ECS Tuning | |||
| 01 | Sada píst s ojnicí | (+0,25) | 1 | 11257508554 | $1183.09 | Shop at ECS Tuning | ||||
| 02 | Ojniční šroub | L=45MM | 8 | 11241485407 | $4.02 | Shop at ECS Tuning | ||||
| 03 | RP ložisková pánev | 44,00MM(0) | 4 | 11241485577 | $32.98 | Shop at ECS Tuning | ||||
| 03 | RP REMAN ložisková pánev | 44,00MM(0) | 4 | 11242465004 | Shop at ECS Tuning | |||||
| 03 | Ložisková pánev | 43,75MM(+0,25) | 4 | 11247829928 | $41.21 | Shop at ECS Tuning | ||||
| 04 | RP ložisková pánev | 44,00MM(0) | 4 | 11241485577 | $32.98 | Shop at ECS Tuning | ||||
| 04 | RP REMAN ložisková pánev | 44,00MM(0) | 4 | 11242465004 | Shop at ECS Tuning | |||||
| 04 | Ložisková pánev | 43,75MM(+0,25) | 4 | 11247829928 | $41.21 | Shop at ECS Tuning | ||||
| 05 | Opravná sada pístní kroužky | (0) | 4 | 11257508555 | $52.96 | Shop at ECS Tuning | ||||
| 05 | Opravná sada pístní kroužky | (+0,25) | 4 | 11257508558 | $52.96 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Klikový mechanismus-ojnice s pístem?
- This technical diagram illustrates the Klikový mechanismus-ojnice s pístem within the Motor group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Sada píst s ojnicí (Part #11257508551).
- Which models use the hardware listed in this Klikový mechanismus-ojnice s pístem?
- The hardware and components featured in the Klikový mechanismus-ojnice s pístem are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Sada píst s ojnicí (11257508551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Klikový mechanismus-ojnice s pístem assembly?
- Each item in the Klikový mechanismus-ojnice s pístem corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Sada píst s ojnicí by locating its position on the schematic, which then links to the official BMW part number 11257508551 for the Motor section.
