Sací systém for BMW MINI R50 Cooper (2000)

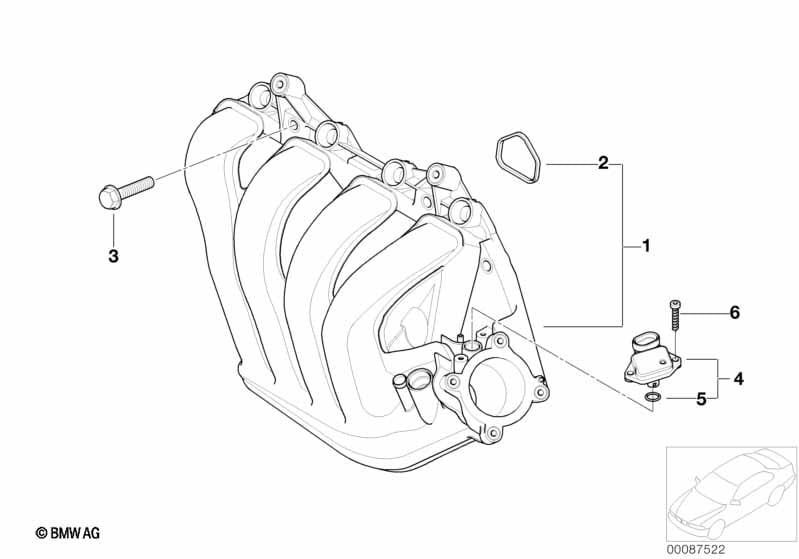

This Sací systém technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sací systém | 1 | 11617562531 | $364.48 | Shop at ECS Tuning | |||||
| 02 | Tvarové těsnění | 4 | 11617633492 | Shop at ECS Tuning | ||||||
| 03 | Šestihranný šroub s přírubou | M8X35MM | 5 | 07131500899 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Čidlo tlaku v sacím potrubí | 1 | 12140872648 | $63.98 | Shop at ECS Tuning | |||||
| 05 | O-kroužek | 2 | 13627515272 | $2.48 | Shop at ECS Tuning | |||||
| 06 | Šroub | 2 | 07101486700 | $0.38 | Shop at ECS Tuning |
