Olejová vana horní díl/měrka oleje for BMW 7 Series E65 760i (2006)

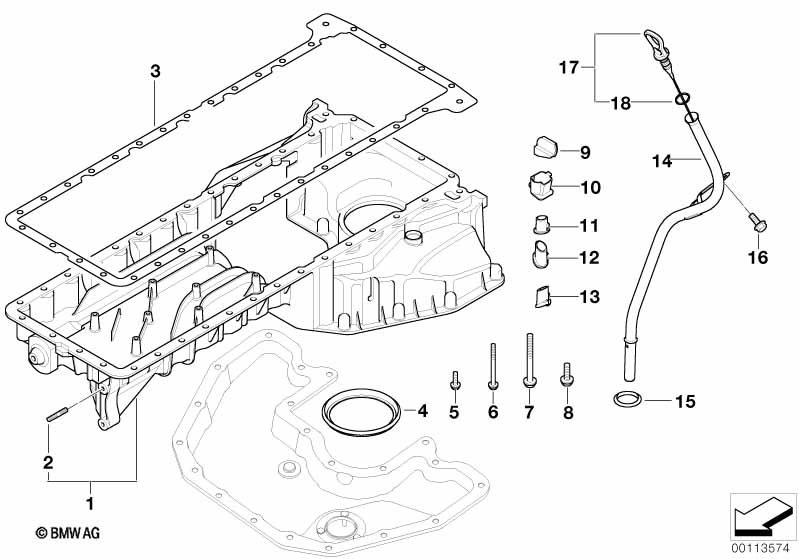

This Olejová vana horní díl/měrka oleje technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana horní díl | 1 | 11137574531 | $1005.55 | UKONČENO, +core | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Tekuté těsnění Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Závrtný šroub | M8X45-8.8-ZNS3 | 1 | 07129903965 | $2.25 | Shop at ECS Tuning | ||||
| 03 | Těsnění kov | 1 | 11137500006 | $48.04 | Shop at ECS Tuning | |||||
| 04 | Tvarové těsnění | 1 | 11417508114 | $12.02 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M6X22-U1ZNNIVSI | 9 | 07119905526 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M6X70 | 1 | 07119905395 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M8X25-8.8-ZNNIV | 24 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub s podložkou | M8X80-U1-8.8 | 2 | 07119904845 | $1.98 | Shop at ECS Tuning | ||||
| 09 | Uzavírací víko | 1 | 11137524165 | $8.69 | Shop at ECS Tuning | |||||
| 10 | Uzavírací víčko | 1 | 11137523083 | $4.70 | Shop at ECS Tuning | |||||
| 11 | Uzavírací víčko | 1 | 11137523084 | $4.70 | Shop at ECS Tuning | |||||
| 12 | Uzavírací víčko | 1 | 11137523085 | $4.70 | Shop at ECS Tuning | |||||
| 13 | Uzavírací víčko | 1 | 11137523086 | $4.70 | Shop at ECS Tuning | |||||
| 14 | Vodicí trubka | 1 | 08/2003 | 11437535854 | $40.73 | Shop at ECS Tuning | ||||
| 15 | O-kroužek | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 16 | Šestihranný šroub s podložkou | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 17 | Olejová měrka | 1 | 03/2005 | 11437549467 | $15.30 | Shop at ECS Tuning | ||||
| 18 | O-kroužek | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
