Přívod oleje/olejové čerpadlo for BMW 3 Series E90 316i (2008)

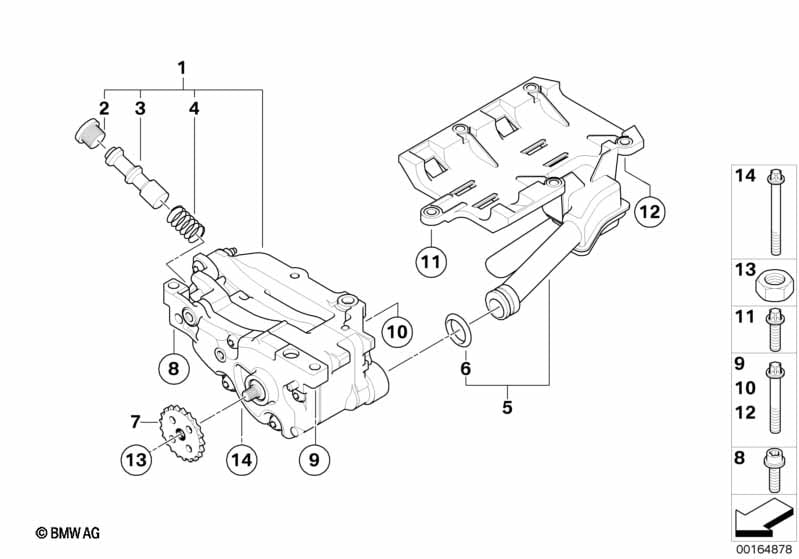

This Přívod oleje/olejové čerpadlo technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejové čerpadlo | 1 | 11415A12274 | Shop at ECS Tuning | ||||||
| 05 | Sací potrubí | 1 | 11417564233 | +core | Shop at ECS Tuning | |||||
| 06 | O-kroužek | 22,2X3,15 | 1 | 11417507756 | $1.83 | Shop at ECS Tuning | ||||
| 07 | Řetězové kolo | 1 | 11317507552 | Shop at ECS Tuning | ||||||
| 08 | Isa-šroub | M8X40-Z1 | 1 | 07129904552 | Shop at ECS Tuning | |||||
| 09 | Šroub Torx | M8X55 | 1 | 11277505697 | Shop at ECS Tuning | |||||
| 10 | Šroub Torx | M8X55 | 1 | 11417526413 | Shop at ECS Tuning | |||||
| 11 | Šroub Torx | M8X21 | 1 | 11137525742 | Shop at ECS Tuning | |||||
| 12 | Šroub Torx | M8X50 | 4 | 11137525743 | Shop at ECS Tuning | |||||
| 13 | Šestihranná matice | M10X1-LH | 1 | 11417506378 | Shop at ECS Tuning | |||||
| 14 | Šroub Torx | M8X135 | 1 | 11417547084 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
