Hlava válců for BMW 1 Series E81 120i (2010)

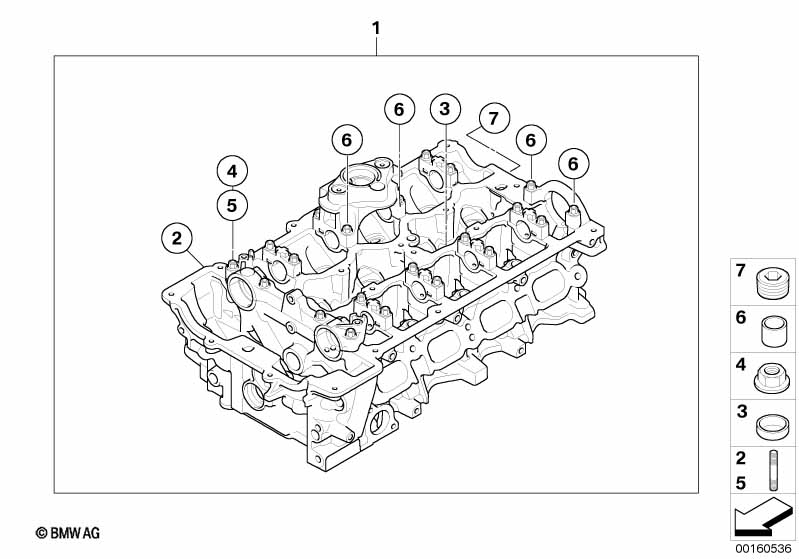

This Hlava válců technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlava válců | 1 | 11127575670 | Shop at ECS Tuning | ||||||
| 02 | Závrtný šroub | M7X37 | 11 | 07129906003 | Shop at ECS Tuning | |||||
| 03 | Uzavírací víko | 18,0MM | 2 | 11121432349 | $2.15 | Shop at ECS Tuning | ||||
| 04 | Přírubová matice | M6 | 22 | 11127568178 | Shop at ECS Tuning | |||||
| 05 | Závrtný šroub | M6X50 | 5 | 07129902312 | Shop at ECS Tuning | |||||
| 06 | Lícovaná objímka | D=7,5MM | 4 | 11127606504 | Shop at ECS Tuning | |||||
| 07 | Šroubový uzávěr | M14X1,5 | 1 | 11127568040 | $3.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E81 120i Hlava válců?
- This technical diagram illustrates the Hlava válců within the Motor group for the 1 Series E81 120i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Hlava válců (Part #11127575670).
- Which models use the hardware listed in this Hlava válců?
- The hardware and components featured in the Hlava válců are specific to the 1 Series E81 120i produced during 2010. These technical specifications ensure that parts like the Hlava válců (11127575670) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hlava válců assembly?
- Each item in the Hlava válců corresponds to the numbered list below the illustration. For the 1 Series E81 120i, you can identify the Hlava válců by locating its position on the schematic, which then links to the official BMW part number 11127575670 for the Motor section.
