Chladicí systém výfuk.turbodmychadla for BMW 7 Series F02 750Li
This Chladicí systém výfuk.turbodmychadla technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadice přívod | ZYL. 1-4 | 1 | 11537578687 | $77.67 | +core | Shop at ECS Tuning | |||
| 02 | Hadice přívod | ZYL. 5-8 | 1 | 11537577013 | $45.42 | +core | Shop at ECS Tuning | |||
| 03 | Hadice vratná větev | ZYL. 1-4 | 1 | 11537577014 | $54.38 | +core | Shop at ECS Tuning | |||
| 04 | Hadice vratná větev | ZYL. 5-8 | 1 | 11537577015 | $45.42 | +core | Shop at ECS Tuning | |||
| 05 | Dutý šroub | M14X26 | 4 | 07148839110 | Shop at ECS Tuning | |||||

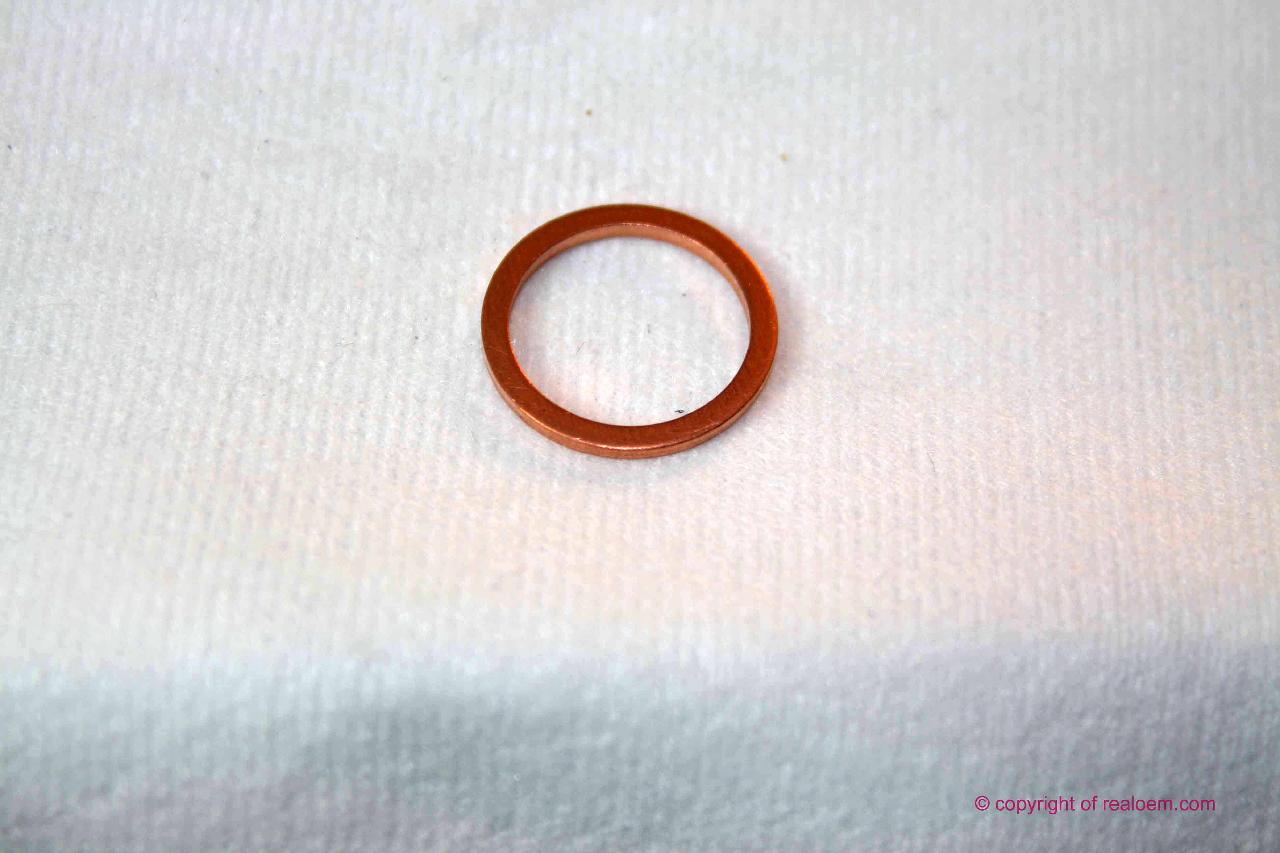

| 06 | Těsnicí kroužek | A14X18-CU | 8 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 07 | hadicová spona | 21,3MM | 3 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Šroub vnější Torx | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Přídavné chladicí čerpadlo | 1 | 11515A36581 | Shop at ECS Tuning | ||||||
| 10 | Šroub s čočkovitou hlavou | M6X12-A2-80 | 2 | 06327651203 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Zátka | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 12 | Univerzální skříň pouzdra MLK nekódovaná | 3 POL. | 1 | 09/2014 | 61136925599 | $3.62 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Utěsnění jednotlivých vodičů | 0.13-0.35MM² | 1 | 09/2014 | 61138353705 | $0.27 | Shop at ECS Tuning | |||
| -- | Zdířkový kontakt MCON 1,2 ELA | 0,5-0,75MM² AG | 1 | 09/2014 | 12527545858 | $0.50 | Shop at ECS Tuning | |||
| 12 | Opravná sada kryt pouzdra | 3 POL. | 1 | 61132359997 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Utěsnění jednotlivých vodičů | 0.13-0.35MM² | 1 | 61138353705 | $0.27 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MCON 1,2 ELA | 0,5-0,75MM² AG | 1 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
| 13 | Odvzdušňovací šroub | M4 | 1 | 11537507218 | $5.79 | Shop at ECS Tuning | ||||
| 14 | O-kroužek | 3,5X1,2 | 1 | 11537593308 | $1.17 | Shop at ECS Tuning | ||||
| 15 | Svorka | 1 | 17227566030 | Shop at ECS Tuning | ||||||
