Uložení motoru/tlumič motoru for BMW 3 Series E30 324td (1991)

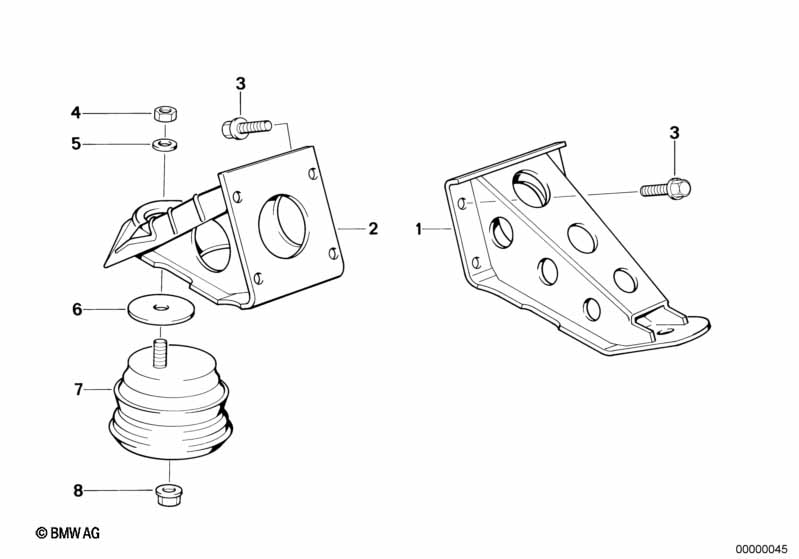

This Uložení motoru/tlumič motoru technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosný třmen levý | ALUMINIUM | 1 | 11811176565 | $32.81 | Shop at ECS Tuning | ||||
| 02 | Nosný třmen pravý | ALUMINIUM | 1 | 11811176564 | $32.81 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M8X25-Z3 | 8 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Pružná podložka | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Pryžové ložisko | 2 | 11811132321 | $54.57 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šestihranná matice samojisticí | M10 | 2 | 32101133077 | $2.50 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324td Uložení motoru/tlumič motoru?
- This technical diagram illustrates the Uložení motoru/tlumič motoru within the Motor group for the 3 Series E30 324td produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Nosný třmen levý (Part #11811176565).
- Which models use the hardware listed in this Uložení motoru/tlumič motoru?
- The hardware and components featured in the Uložení motoru/tlumič motoru are specific to the 3 Series E30 324td produced during 1991. These technical specifications ensure that parts like the Nosný třmen levý (11811176565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uložení motoru/tlumič motoru assembly?
- Each item in the Uložení motoru/tlumič motoru corresponds to the numbered list below the illustration. For the 3 Series E30 324td, you can identify the Nosný třmen levý by locating its position on the schematic, which then links to the official BMW part number 11811176565 for the Motor section.
