Olejová vana/olejová měrka for BMW 3 Series E30 318i (1994)

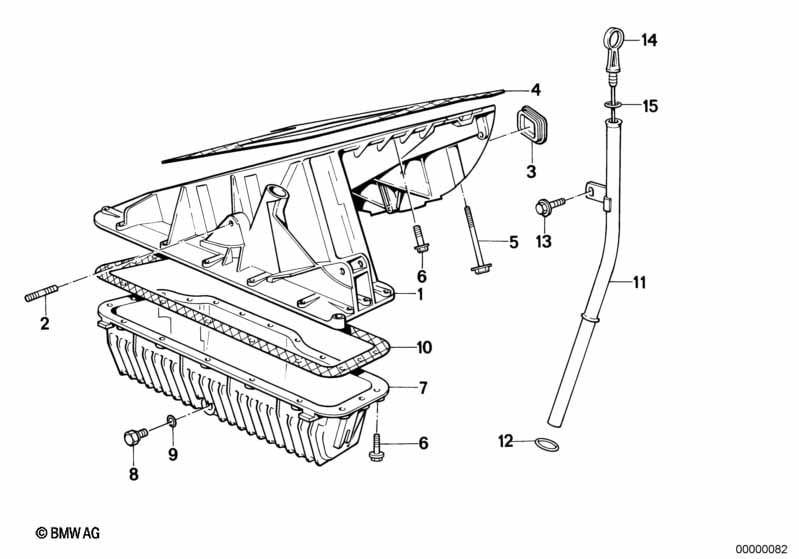

This Olejová vana/olejová měrka technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana horní díl | 1 | 11131715120 | $308.45 | Shop at ECS Tuning | |||||
| 02 | Závrtný šroub | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 03 | Kryt | 1 | 11131717720 | $5.36 | Shop at ECS Tuning | |||||
| 04 | Těsnění bez azbestu | 1 | 11131739592 | $24.02 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M6X60 | 2 | 11131247070 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M6X18 | X | 11131247069 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Olejová vana | 1 | 11131715266 | $141.15 | UKONČENO | Shop at ECS Tuning | ||||
| bez hladinového spínače |
||||||||||
| 08 | Šroubový uzávěr | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 09 | Těsnicí kroužek | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Těsnění bez azbestu | 1 | 11131709815 | $19.18 | Shop at ECS Tuning | |||||
| 11 | Vodicí trubka | L=484MM | 1 | 11431717942 | $28.83 | UKONČENO | Shop at ECS Tuning | |||
| 12 | O-kroužek | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub s podložkou | M6X16-Z3 | 1 | 07119915123 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Olejová měrka | 1 | 09/1990 | 11431734247 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | O-kroužek | 9X2,2 | 2 | 09/1990 | 11431717666 | $0.73 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
