Přívod oleje/olejové čerpadlo s pohonem for BMW 3 Series E30 318i (1991)

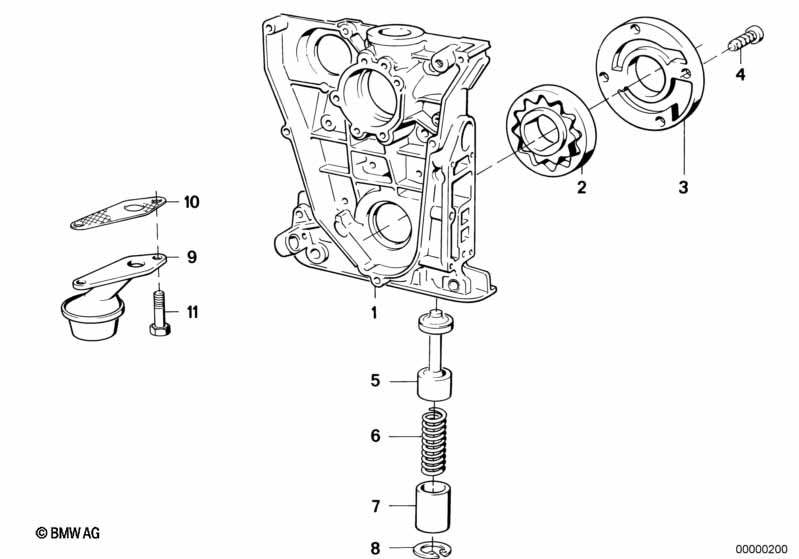

This Přívod oleje/olejové čerpadlo s pohonem technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skříň převodovky dolní | INCL.PUMPE | 1 | 11141714616 | $176.33 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Sada rotor | 1 | 11141714611 | $51.57 | Shop at ECS Tuning | |||||
| 03 | Víko olejového čerpadla | 1 | 11141714613 | $12.80 | Shop at ECS Tuning | |||||
| 04 | Isa-šroub | M6X14 | 4 | 07129903401 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Řídicí ventil | 1 | 11141247393 | $9.17 | Shop at ECS Tuning | |||||
| 06 | Spirálová pružina | 1 | 11411706809 | $3.43 | Shop at ECS Tuning | |||||
| 07 | Distanční pouzdro | 1 | 11141247397 | $2.14 | Shop at ECS Tuning | |||||
| 08 | Pojistný kroužek | 21X1 | 1 | 07119934625 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Sací hrdlo | 1 | 11411715264 | $16.68 | Shop at ECS Tuning | |||||
| 10 | Těsnění bez azbestu | 1 | 11411715116 | $5.17 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub s podložkou | M6X18 | 2 | 11131247069 | $0.47 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
